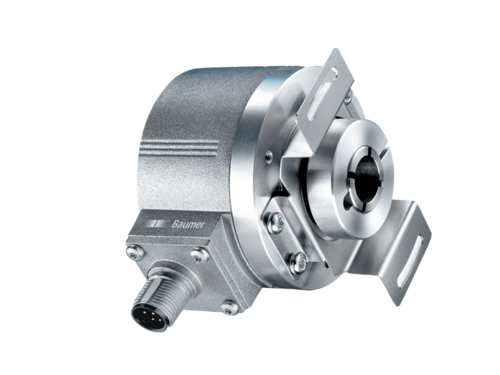

EIL580P-TT14.5FF.01024.B Incremental Encoder, designed for precision and reliability.
This encoder features a compact size of ø58 mm and offers programmable output signal levels for versatile applications.
The EIL580P-TT14.5FF.01024.B is an incremental encoder with optical sensing used for speed measurement. It has high accuracy and resistance to contamination, making it ideal for a variety of industrial applications.
With a supply voltage range of 4.75…30 VDC and minimal power consumption, this encoder is both efficient and effective. Its durable construction ensures longevity even in challenging environments.
Datasheet:
- Supply voltage: 4.75…30 VDC
- No-load power consumption: ≤70 mA
- Number of pulses per revolution: 1…65536 (programmable)
- Phase shift: 90° ± 20°
- Rotating frequency: ≤300 kHz (TTL), ≤160 kHz (HTL)
- Output signals: A+, B+, R+, A-, B-, R-
- Sensing method: Optical
- Type of output stages: TTL/RS422 or HTL/push-pull
- Flange size: ø58 mm
- Shaft type: ø14.5 mm (through hollow shaft)
- Permissible shaft load: ≤450 N axially, ≤600 N radially
- Protection: IP 65 (without shaft cover), IP 67 (with shaft cover)
- Operating temperature range: -40…+100 °C
- Material: Housing – aluminum, shaft – stainless steel
Advantages:
- High accuracy: System accuracy up to 0.5°.
- Resistance to contamination: High resistance to dust and other contaminants
- Small size: Provides the ability to install in confined spaces
- High resistance to vibrations: Complies with EN 60068-2-6 and EN 60068-2-27 standards
- Minimal energy consumption: High level of energy efficiency
