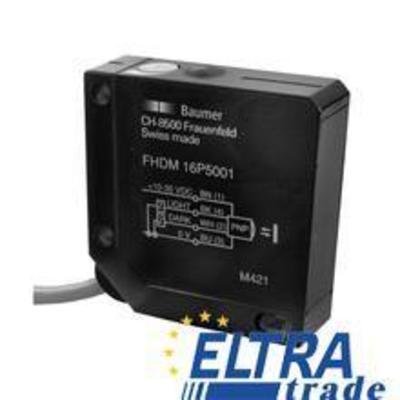

Baumer FHDM 16P5001/KS34A, a cutting-edge diffuse sensor designed for accurate detection with background suppression. Ideal for various applications, it offers exceptional performance in challenging environments.
| width / diameter | 15,4 mm |
| sensing range Tb (at Tw min.) | 5 … 20 mm |
| current consumption typ. | 29 mA |
| output current | < 200 mA |
| output function | light / dark operate |
| suppression of reciprocal influence | yes |
| sensing distance adjustment | mechanical, 5 turn |
| voltage supply range +Vs | 10 … 30 VDC |
| type | rectangular |
| front (optics) | PMMA |
| sensing range Tb (at Tw max.) | 20 … 450 mm |
| operating temperature | -25 … +65 °C |
| manufacter SKU | FHDM 16P5001 |
| response time / release time | < 1 ms |
| depth | 50 mm |
| voltage drop Vd | < 1,8 VDC |
| connection types | cable 4 pin, 2 m |
| protection class | IP 67 |
| height / length | 50 mm |
| light indicator | LED yellow |
| current consumption max. (no load) | 41 mA |
| sensing distance Tw | 20 … 450 mm |
This sensor is built to withstand harsh conditions with an IP67 protection class, ensuring reliability and durability. With its pulsed red LED light source, it provides precise sensing distances from 20 to 450 mm, making it suitable for a wide range of applications.
