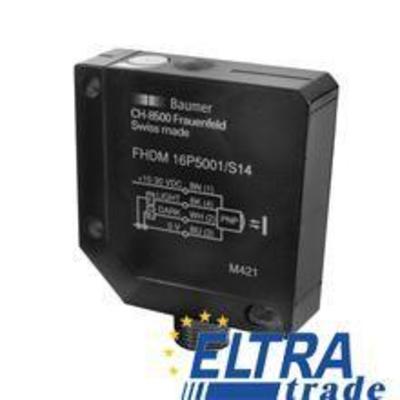

Baumer diffuse sensors with background suppression, designed for precise detection in various environments.
These sensors utilize a pulsed red LED light source, ensuring reliable performance within a sensing distance of 20 to 450 mm.
| operating temperature | -25 … +65 °C |
| depth | 50 mm |
| response time / release time | < 1 ms |
| sensing distance adjustment | mechanical, 5 turn |
| sensing distance Tw | 20 … 450 mm |
| light source | pulsed red LED |
| height / length | 50 mm |
| sensing range Tb (at Tw max.) | 20 … 450 mm |
| output function | light / dark operate |
| wave length | 660 nm |
| front (optics) | PMMA |
| light indicator | LED yellow |
| sensing range Tb (at Tw min.) | 5 … 20 mm |
| housing material | die-cast zinc |
| voltage drop Vd | < 1,8 VDC |
| manufacter SKU | FHDM 16P5001/S14 |
| type | rectangular |
| connection types | connector M12 4 pin |
| type | background suppression |
| suppression of reciprocal influence | yes |
| short circuit protection | yes |
| current consumption typ. | 29 mA |
| output circuit | PNP |
| width / diameter | 15,4 mm |
| voltage supply range +Vs | 10 … 30 VDC |
| output current | < 200 mA |
| protection class | IP 67 |
| reverse polarity protection | yes |
| current consumption max. (no load) | 41 mA |
Designed for tough environments, this sensor features IP67 protection class, ensuring durability and reliability. With a mechanical sensing distance adjustment and quick response time, it’s suitable for a wide range of applications.
