Copy counters
SKU:
FLDK 110G1005/S14
0.00€
Out of stock
One click request

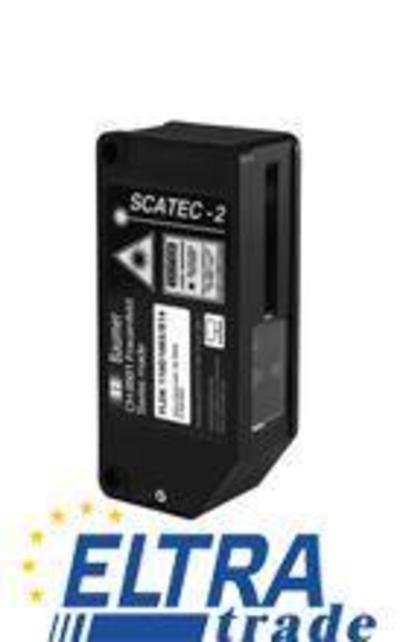

FLDK 110G1005/S14 Copy Counters, designed for precise counting applications. With a measuring distance of 0 to 120 mm, it guarantees reliable performance with a counting rate of less than 600,000 copies per hour.
Manufacturer:
Baumer
Description:
| object cycle distance | > 1 mm |
| measuring distance Sd | 0 … 120 mm |
| reverse polarity protection | yes |
| object speed | < 5 m/sec |
| short circuit protection | yes |
| power on indication | LED green |
| edge indicator | LED yellow |
| manufacter SKU | FLDK 110G1005/S14 |
| width / diameter | 30 mm |
| sensitivity | single sheet/edge thickness 0,25 mm |
| operating temperature | 0 … +50 °C |
| wave length | 670 nm |
| measuring point | visible red laser line 3 mm |
| housing material | PA 6 |
| optimum operating distance | 100 mm |
| current consumption max. (no load) | 180 mA |
| protection class | IP 54 |
| counting rate | < 600000 copies/h |
| false pulse suppression | on/off switchable |
| laser class | 2 |
| voltage supply range +Vs | 10 … 30 VDC |
| output circuit | push-pull |
| light source | pulsed red laser diode |
| output pulse length | 5 / 10 / 15 / 20 ms selectable |
| front (optics) | glass |
| sync. input | no |
| type | rectangular |
| connector base (main connector) | M12 x 1, 4 pin |
This sensor is ideal for various industrial applications requiring accurate counting and measurement. Its robust design ensures durability and long-lasting performance even in challenging environments.
