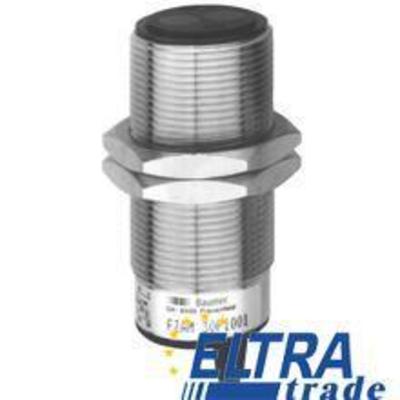

Diffuse sensors with intensity difference, designed for precision and reliability.
Ideal for various applications, these sensors feature a pulsed infrared diode and a sensing distance of 300 to 1500 mm.
| output function | light / dark operate |
| output circuit | NPN |
| width / diameter | 30 mm |
| type | intensity difference |
| operating temperature | 0 … +65 °C |
| voltage drop Vd | < 2,5 VDC |
| wave length | 880 nm |
| output current | < 100 mA |
| sensitivity adjustment | potentiometer, 15 turn |
| protection class | IP 65 |
| current consumption typ. | 50 mA |
| alignment / soiled lens indicator | flashing light indicator |
| type | cylindrical threaded |
| front (optics) | PC |
| housing material | brass nickel plated |
| short circuit protection | yes |
| light source | pulsed infrared diode |
| sensing distance Tw | 300 … 1500 mm |
| manufacter SKU | FZAM 30N5002 |
| connection types | cable 4 pin, 2 m |
| response time / release time | < 2,5 ms |
| reverse polarity protection | yes |
| voltage supply range +Vs | 10 … 30 VDC |
| current consumption max. (no load) | 60 mA |
| height / length | 66 mm |
| light indicator | LED yellow |
This sensor operates efficiently within a temperature range of 0 to +65 °C, ensuring reliable performance in various environments. Designed with user-friendly features like sensitivity adjustment and short circuit protection, it is an excellent choice for both industrial and commercial applications.
