G 305 is an advanced incremental encoder featuring an optical sensing method.
With capability of delivering up to 120 pulses across 1 or 2 pulse tracks, it is ideal for precise measurements.

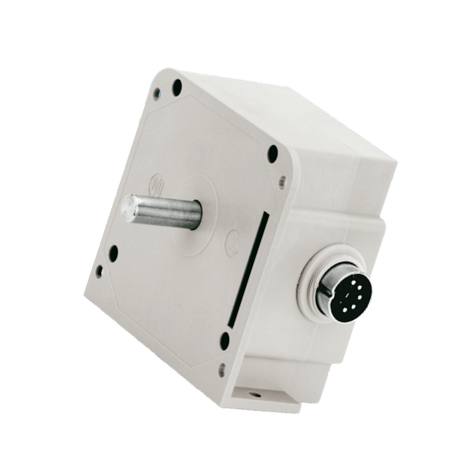

The Baumer G 305 is a high-precision incremental encoder with optical measurement that is specially designed for industrial applications where precision and reliability are essential.
Datasheet:
- Supply voltage: 10…30 VDC
- No-load consumption: ≤40 mA
- Steps per revolution: 5 … 120
- Measurement method: Optical
- Output frequency: ≤10 kHz (1 track), ≤6 kHz (2 tracks)
- Output signals: A or A 90° B
- Output stages: Push-pull short-circuit protection
Mechanical design
- Size (flange): 62.5 x 70 mm
- Shaft type: ø7 mm solid shaft, single / double shaft
- Permissible shaft load: ≤5 N axial, ≤10 N radial
- Protection according to EN 60529: IP 30 (with housing cover), IP 52 (with PG cable protection nut)
- Operating speed: ≤6000 rpm
- Material: Housing: plastic reinforced with fiberglass
- Operating temperature: 0…+60 °C
- Relative humidity: 95 % without condensation
- Connection: M18 connector, 5-pin; 2 m cable
- Weight: approx. 130 g
Advantages:
- High accuracy: Provides accurate position measurement in increments of 5 … 120 revolutions.
- Resistance to vibrations and shocks: High resistance to vibrations and shocks ensures reliability in industrial environments.
- Optical measurement method: Provides high accuracy and reliability of measurement.
This encoder is built to withstand challenging conditions, making it suitable for various industrial applications. Its robust design ensures consistent performance, even in demanding environments.
