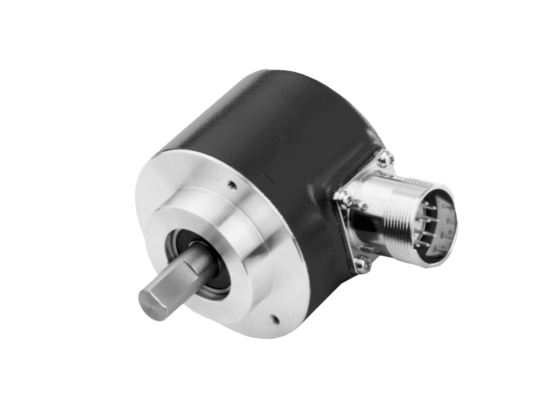

Baumer G0355

The G0355 incremental encoders from Baumer are high-precision devices designed to measure angular displacements. They feature a compact design and high resistance to shock and vibration, making them ideal for use in industrial environments.

With a maximum of 80000 pulses per revolution, the G0355 ensures accurate measurements for demanding applications. The encoder is equipped with reverse polarity protection, enhancing reliability and performance in various conditions.

Datasheet:

• Shaft type: solid shaft with a diameter of 10 mm or 6 mm
• Maximum number of pulses per revolution: up to 80000
• Measurement method: optical
• Maximum rotation speed: up to 10000 rpm
• Supply voltage: 5 VDC В±10 %, 4.75…30 VDC, 10…30 VDC
• Reverse polarity protection: yes (4.75…30 VDC)
• Consumption without load: ≤30 mA (24 VDC), ≤60 mA (5 VDC)
• Output signal frequency: up to 300 kHz
• Output signals: A 90° B, N + inverted
• Output stages: line driver/RS422, push-pull with short-circuit protection
• Interference resistance: EN 61000-6-2
• Radiated interference: EN 61000-6-4
• Size (flange): Ø58 mm
• Permissible load on the shaft: ≤20 N (axial), ≤40 N (radial)
• Protection: EN 60529 IP 54 (without shaft seal), IP 65 (with shaft seal)
• Operating temperature: -25…+100 °C (5 VDC), -25…+85 °C (24 VDC), -40…+85 °C (optional)
• Relative humidity: 95 % non-condensing
• Material: housing – aluminum, flange – aluminum
• Weight: approx. 250 g

Advantages:

• High accuracy: up to 80,000 pulses per revolution ensure precise measurement.
• Compact design: easy to integrate into various systems.
• High rotational speed: Up to 10000 rpm allows for high-speed applications.
• Shock and vibration resistance: ensures reliable operation in harsh environments.
• Wide operating temperature range: allows for use in various climatic conditions.
• Reverse polarity protection: increases the reliability of the device.
