Absolute encoder
SKU:
G0M2H
0.00€
Out of stock
One click request

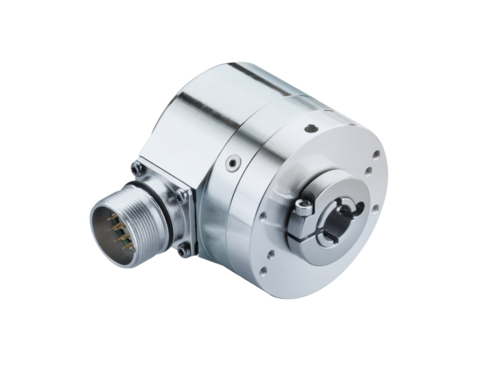

G0M2H Absolute Encoder, designed for precision and reliability.
With an optical reading method and a hollow shaft diameter of up to 14 mm, it ensures optimal performance in various applications.
Manufacturer:
Baumer
Description:
| Steps per turn | ≤16384 / 14 bit |
| Code | Gray or binary |
| Interference immunity | DIN EN 61000-6-2 |
| Operating temperature | -25…+85 °C -40…+85 °C (optional) |
| manufacter SKU | G0M2H |
| Starting acceleration | ≤1000 U/s² |
| Number of turns | 4096 / 12 bit |
| Initializing time typ. | 20 ms after power on |
| Function | Multiturn |
| Code sequence | CW/CCW coded by connection |
| Voltage supply | 10…30 VDC |
| Approval | UL approval / E63076 |
| Protection DIN EN 60529 | IP 54 IP 65 (optional) |
| Resistance | DIN EN 60068-2-6 Vibration 10 g, 16-2000 Hz DIN EN 60068-2-27 Shock 200 g, 6 ms |
| Rotor moment of inertia | 20 gcm² |
| Diagnostic functions | Self-diagnosis Multiturn sensing |
| Reverse polarity protection | Yes |
| Shaft type | ø10 mm (through hollow shaft) ø12 mm (through hollow shaft) ø14 mm (through hollow shaft) |
| Incremental output | 2048 pulses A90°B + inverted |
| Sensing method | Optical |
| Starting torque | ≤0.04 Nm (IP 54) |
| Consumption w/o load | ≤50 mA (24 VDC) |
| Emitted interference | DIN EN 61000-6-4 |
| Size (flange) | ø58 mm |
| Connection | Connector M23, 12-pin Cable 1 m |
| Inputs | SSI clock Control signals UP/DOWN and zero |
| Operating speed | ≤6000 rpm (mechanical) ≤6000 rpm (electric) |
| Absolute accuracy | ±0.025 ° |
| Materials | Housing: aluminium Flange: aluminium |
| Interfaces | SSI Incremental A 90° B (optional) |
| Output stages | SSI data: linedriver RS485 Diagnostic outputs push-pull |
| Weight approx. | 400 g |
| Relative humidity | 95 % non-condensing |
This encoder stands out with its robust design and high accuracy, making it suitable for demanding industrial applications. Its versatility and various features ensure seamless integration into your systems, delivering reliable performance.
