Baumer G1I0H

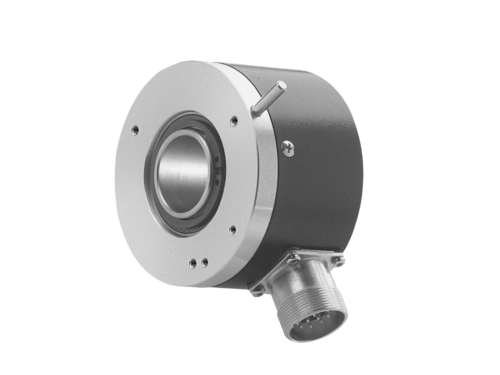

The G1I0H is an incremental encoder with a hollow or blind shaft with a diameter of up to ø25.4 mm. It supports up to 16384 pulses per revolution and uses an optical tracking method for precise speed measurement.

Datasheet

Electrical specifications:

• Supply voltage: 4.75…30 VDC
• No-load consumption: ≤60 mA (5 VDC), ≤30 mA (24 VDC)
• Pulse frequency: 1024…16384 per revolution
• Tracking method: Optical
• Output signals: A (90°), B, N (inverted)
• Interference resistance: EN 61000-6-2
• Radiated interference: EN 61000-6-4
• Approvals: UL approval / E63076

Mechanical design:

• Size (flange): ø75 mm
• Shaft type: ø20 mm (hollow shaft), ø25 mm (hollow shaft), ø25.4 mm (hollow shaft)
• Protection according to EN 60529: IP 54
• Rotational speed: ≤3800 rpm
• Material:
• Housing: aluminum
• Flange: aluminum
• Operating temperature: -25…+85 °C (24 VDC), -40…+85 °C (optional)
• Relative humidity: 95 % without condensation
• Resistance:
• Vibration: EN 60068-2-6, 10 g, 16-2000 Hz
• Shock: EN 60068-2-27, 200 g, 6 ms
• Connection: M23 connector, 12-pin
• Weight: approx. 700 g

Advantages:

• High accuracy: Provides precise speed measurement thanks to the optical tracking method.
• Resistant to conditions: Operates in a wide range of temperatures and humidity, allowing it to be used in a variety of environments.
• Rugged design: Highly resistant to vibrations, shocks, and industrial environments.
• Energy efficiency: Minimal power consumption reduces energy costs, which is important for long-term projects.
• Protection: High protection level of up to IP 54, making it suitable for use in wet and dust environments.
