GA240 – SSI is a high-performance absolute encoder designed for precision applications.
Featuring an optical sensing method and a resolution of 14 bits, it ensures accurate measurements and reliable performance.

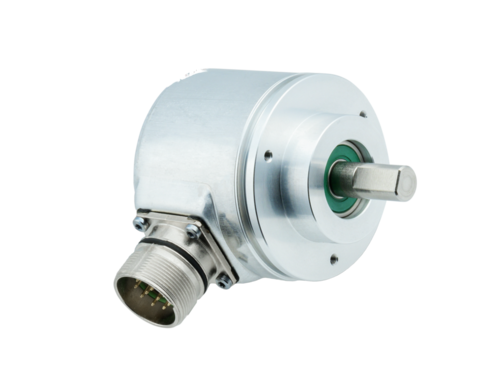

The GA240 – SSI Baumer is an absolute encoder with an optical reading method. It is equipped with a solid shaft with a clamping flange and offers high accuracy and reliability in measuring angular positions.
Datasheet:
- Reading method: Optical
- Resolution: 14 bits (up to 16384 steps per revolution)
- Supply voltage: 10…30 VDC or 5 VDC ±10% (on request)
- No-load consumption: ≤50 mA (24 VDC)
- Interface: SSI, additional incremental output (optional)
- Absolute accuracy: ±0.025°
- Rotation speed: up to 10000 rpm (mechanical), up to 6000 rpm (electric)
- Body material: Aluminum
- Operating temperature: -25 to +85 °C (optionally -40 to +85 °C)
- Humidity: 95% without condensation
- Protection: IP 54 (without shaft seal), IP 65 (with shaft seal)
- Weight: approx. 250 g
- Connection: M23, 12-pin connector or M12, 8-pin connector, 1 m cable
Advantages:
- High accuracy: Thanks to its optical reading method and high resolution, the GA240 – SSI provides accurate measurements.
- Reliability: The robust aluminum housing and high level of protection (IP 65) make this encoder resistant to external factors.
- Flexibility: The possibility of electronic zero point adjustment and the availability of an additional incremental output allow the encoder to be adapted to various applications.
- Speed: High rotational speed of up to 10000 rpm ensures efficient operation in dynamic systems.
This encoder is ideal for applications requiring precise angular measurements in various industrial environments.
