GBAMS Absolute Encoders from Baumer. These encoders utilize an optical measurement method, ensuring exceptional precision and reliability.

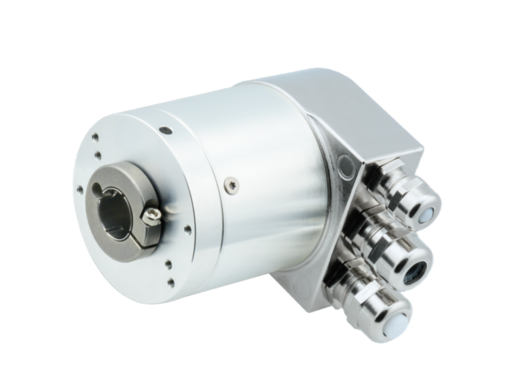

GBAMS (Absolute Encoders) from Baumer are high-precision optical encoders with a blind hollow shaft.
Datasheet:
- Reverse polarity protection: Yes
- Consumption without load: ≤100 mA (24 VDC)
- Initialization time: 250 ms after power on
- Interfaces: CANopen®, EtherCAT, EtherNet/IP, Profibus, PROFINET, SAE J1939, SSI
- Function: Singleturn
- Device address: Rotary switches in the bus cover
- Steps per rotation: ≤262144 / 18 bits
- Absolute accuracy: ±0.01 °
- Code: Binary
- Code sequence: CW/CCW programmable
- Immunity to interference: EN 61000-6-2
- Radiated interference: EN 61000-6-4
- Programmable parameters: Steps per rotation, Preset, Scaling, Direction of rotation
- Status indicator: DUO-LED integrated in the bus cover
- Approval: UL approval / E63076
- Shaft type: ø12…15 mm (blind hollow shaft)
- Protection according to EN 60529: IP 54, IP 65 (optional)
- Operating speed: ≤6000 rpm (mechanical), ≤6000 rpm (electric)
- Initial acceleration: ≤1000 U/s²
- Initial torque: ≤0.015 Nm (+25 °C)
- Rotor moment of inertia: 20 gcm²
- Material: Housing: aluminum, Flange: aluminum, Busbar cover: die-cast zinc
- Operating temperature: -25…+85 °C, -40…+85 °C (optional)
- Relative humidity: 95 % without condensation
- Resistance: EN 60068-2-6 Vibration 10 g, 16-2000 Hz, EN 60068-2-27 Impact 200 g, 6 ms
- Weight approx: 600 ã
- Connection: Tire cover
These encoders are designed to withstand harsh industrial environments, ensuring long-lasting performance. With a wide range of interfaces available, they integrate easily into various systems. Choose GBAMS for a reliable solution in precision measurement.
