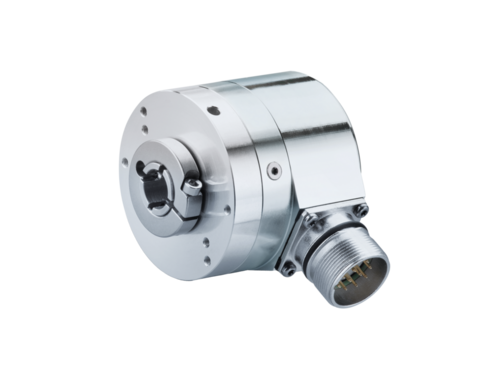

Baumer GBM2H

The GBM2H is a high-resolution absolute encoder from Baumer, designed to provide precise position measurements in industrial applications.

Datasheet:

• Voltage Supply: 10…30 VDC
• Reverse Polarity Protection: Yes
• Consumption w/o Load: ≤50 mA (24 VDC)
• Initializing Time: Typically 20 ms after power on
• Interface: SSI, Incremental A 90° B (optional)
• Function: Multiturn
• Steps per Revolution: 262144 / 18 bit
• Number of Revolutions: 4096 / 12 bit
• Absolute Accuracy: ±0.01 °
• Sensing Method: Optical
• Code: Gray or binary
• Code Sequence: CW/CCW coded by connection
• Inputs: SSI clock: RS422, Control signals UP/DOWN inv. and zero
• Output Stages: SSI data: Linedriver RS422, Diagnostic outputs push-pull
• Incremental Output: 2048 pulses A90°B + inverted
• Interference Immunity: EN 61000-6-2
• Emitted Interference: EN 61000-6-4
• Diagnostic Function: Self-diagnosis, Multiturn sensing
• Approval: UL approval / E63076

Technical Data – Mechanical Design

• Size (Flange): ø58 mm
• Shaft Type: ø10…14 mm (through hollow shaft)
• Protection EN 60529: IP 54, IP 65 (optional)
• Operating Speed: ≤6000 rpm (mechanical), ≤6000 rpm (electric)
• Starting Acceleration: ≤1000 U/s²
• Starting Torque: ≤0.04 Nm (+25 °C, IP 54)
• Rotor Moment of Inertia: 20 gcm²
• Material: Housing: aluminium, Flange: aluminium
• Operating Temperature: -25…+85 °C, -40…+85 °C (optional)
• Relative Humidity: 95 % non-condensing
• Resistance: EN 60068-2-6 Vibration ±0.75 mm – 10-58 Hz, 10 g – 58-2000 Hz, EN 60068-2-27 Shock 200 g, 6 ms
• Connection: Connector M23, 12-pin, Cable 1 m
• Weight: Approx. 400 g

This encoder is ideal for applications requiring high precision and reliability, making it a vital component in automation and control systems.

With its compact design and robust features, the GBM2H is suited for various industrial environments.
