Baumer GI355 is an advanced incremental rotary encoder designed for precision applications.
Featuring an optical measurement method, it ensures high accuracy and stability.

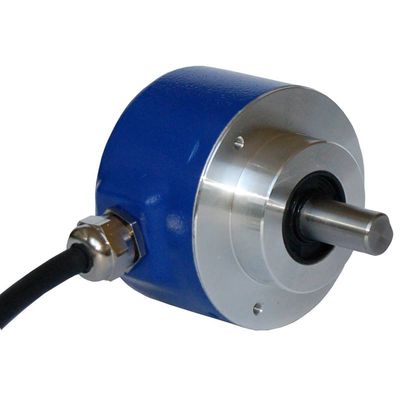

Incremental encoder GI355.0704415 3.303.054 Baumer is a high-precision optical encoder with a solid shaft with a diameter of 10 mm.
This encoder is ideal for applications requiring high performance and reliability.
Its robust construction and high IP protection ratings make it suitable for harsh environments.
With a resolution of up to 500 pulses per revolution, it guarantees precise feedback for various motion control applications.
Datasheet:
- Resolution: 500 pulses per revolution
- Flange type: clamping or synchro flange
- Maximum rotation speed: up to 10,000 rpm
- Protection: IP 54 (without shaft seal) or IP 65 (with shaft seal)
- Operating temperature: from -25 to +100 °C (for 5 VDC) and from -25 to +85 °C (for 24 VDC)
- Output signals: A 90° B, N + inversion
- Output cascades: Linedriver/RS422, Push-pull with short-circuit protection
- Supply voltage: 5 VDC or 24 VDC
- Current consumption: up to 70 mA (no load)
- Moment of inertia of the rotor: 14.5 g·cm²
- Maximum axial load: 20 N
- Maximum radial load: 40 N
- Connection: M23 connector, 12-pin or 1 m cable
- Weight: approximately 250 g
Advantages:
- High accuracy: Thanks to the optical measurement method, high accuracy and stability of the signal is ensured.
- Reliability: High level of protection (IP 54/IP 65) allows you to use the encoder in conditions of high humidity and dust.
- Wide range of operating temperatures: Ability to work in extreme temperature conditions.
- High rotational speed: Suitable for applications requiring high rotational speed up to 10,000 rpm.
