Baumer GI355.0704415

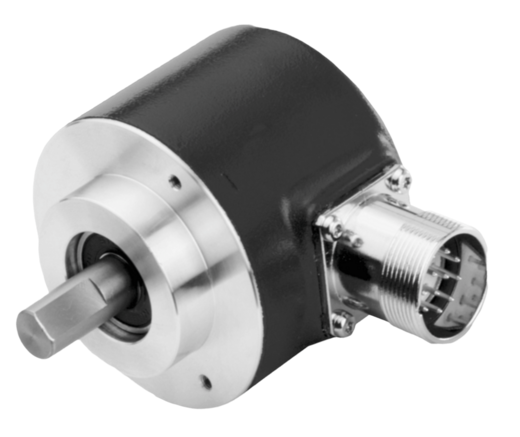

Incremental encoder GI355.0704415 Baumer is a high-precision optical encoder with a solid shaft with a diameter of 10 mm. It is intended for use in industrial conditions and provides reliable measurement of angular movements.

This encoder is designed to withstand harsh environments and offers outstanding performance with a maximum rotation speed of up to 10,000 rpm. Its robust construction ensures durability, while the option for IP 54 or IP 65 protection makes it adaptable to various applications.

Datasheet:

• Flange type: clamping or synchro flange
• Maximum rotation speed: up to 10,000 rpm
• Protection: IP 54 (without shaft seal) or IP 65 (with shaft seal)
• Operating temperature: from -25 to +100 °C (for 5 VDC) and from -25 to +85 °C (for 24 VDC)
• Output signals: A 90° B, N + inversion
• Output cascades: Linedriver/RS422, Push-pull with short-circuit protection
• Supply voltage: 5 VDC or 24 VDC
• Current consumption: up to 70 mA (no load)
• Moment of inertia of the rotor: 14.5 g·cm²
• Maximum axial load: 20 N
• Maximum radial load: 40 N
• Shaft material: stainless steel
• Body material: aluminum
• Connection: M23 connector, 12-pin or 1 m cable
• Weight: approximately 250 g

Advantages:

• High accuracy: Thanks to the optical measurement method, high accuracy and stability of the signal is ensured.
• Reliability: High level of protection (IP 54/IP 65) allows you to use the encoder in conditions of high humidity and dust.
• Wide range of operating temperatures: Ability to work in extreme temperature conditions.
• High rotational speed: Suitable for applications requiring high rotational speed up to 10,000 rpm.
