Baumer GI356

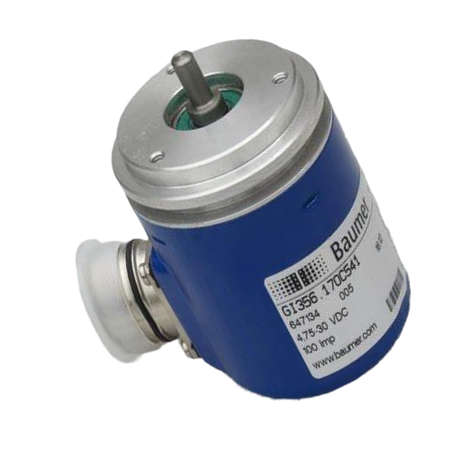

The GI356 is equipped with a solid shaft with a diameter of 10 mm or 6 mm and can be equipped with a clamping or synchronous flange. It uses an optical reading method and supports up to 6000 pulses per revolution.

This encoder is built to withstand challenging environments, offering high durability and performance. With a robust construction, it ensures reliable operation under various conditions, making it suitable for industrial applications.

Datasheet:

• Supply voltage: 5 VDC ±10%, 4.75…30 VDC, 10…30 VDC
• Reverse polarity protection: Yes (4.75…30 VDC)
• No-load consumption: ≤30 mA (24 VDC), ≤60 mA (5 VDC)
• Pulses per revolution: 5 … 6000
• Output signal frequency: ≤150 kHz
• Output signals: A 90° B, N + inverted
• Output stages: Line driver/RS422, push-pull with short circuit protection
• Interference resistance: EN 61000-6-2
• Radiated interference: EN 61000-6-4
• Permissible load on the shaft: ≤20 N axial, ≤40 N radial
• Protection: EN 60529 IP 54 (without shaft seal), IP 65 (with shaft seal)
• Rotation speed: ≤10000 rpm
• Starting torque: ≤0.015 Nm (+25 °C, IP 54), ≤0.03 Nm (+25 °C, IP 65)
• Rotor moment of inertia: 14.5 gcm²
• Material: Housing – aluminum, Flange – aluminum
• Operating temperature: -25…+100 °C (5 VDC), -25…+85 °C (24 VDC), -40…+85 °C (optional)
• Relative humidity: 95 % non-condensing
• Vibration resistance: EN 60068-2-6, 10 g, 16-2000 Hz
• Impact resistance: EN 60068-2-27, 200 g, 6 ms
• Connections: M23 connector, 12-pin, 1 m cable
• Weight: approx. 250 g.

Advantages:

• High accuracy: Thanks to the optical reading method, high measurement accuracy is ensured.
• Reliability: High level of protection against dust and moisture (IP 65 with shaft seal).
• Flexibility: A choice of different flange types and shaft diameters.
• Wide operating temperature range: Suitable for use in a variety of operating conditions.
• High rotational speed: Supports speeds up to 10000 rpm
