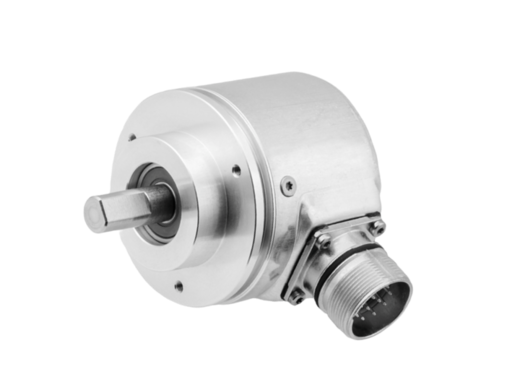

Baumer GM400 Absolute Encoder. This robust encoder features a compact design with a flange size of Ø58 mm and a solid Ø10 mm shaft, making it ideal for various applications.
The Baumer GM400 is an absolute encoder used for precise angular position measurement.
Datasheet:
- Measurement method: Optical
- Resolution:
- Single-turn mode: up to 14 bits
- Multi-turn mode: up to 16 bits
- Interface: SSI, additional incremental outputs (optional)
- Supply voltage: 10…30 VDC or 5 VDC В±10%
- No-load consumption: ≤50 mA (24 VDC), ≤80 mA (5 VDC)
- Initialization time: about 20ms after power on
- Maximum rotation speed:
- Mechanical: up to 10,000 rpm
- Electric: up to 6000 rpm
- Body material: Aluminum
- Operating temperature: from -25 to +85 °C (optionally from -40 to +85 °C)
- Protection: IP 54 (without shaft seal), IP 65 (with shaft seal)
- Weight: approximately 400 g
With its optical measurement method and high resolution, the GM400 ensures reliable performance in demanding environments. Its lightweight aluminum body and wide operating temperature range make it suitable for various industrial applications.
