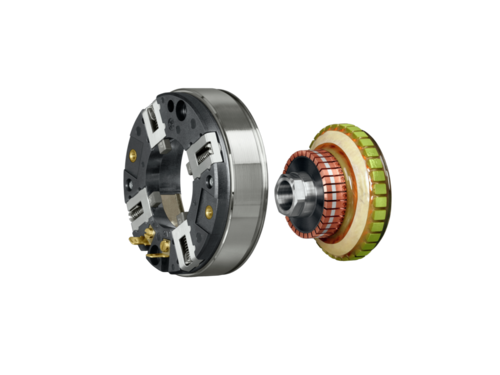

GT 9, a state-of-the-art tachogenerator designed for precision and reliability.
With an open circuit voltage of 10…20 mV per rpm, it ensures optimal performance for various industrial applications.
The GT 9 is a high-precision tachogenerator from Baumer, designed for accurate measurement of rotational speed in various industrial applications. This tachogenerator features a blind hollow shaft or cone shaft design, ensuring exceptional signal quality and reliability.
Thanks to its patented LongLife technology, the GT 9 delivers high signal quality without the need for an auxiliary energy source.
Datasheet:
- Reversal Tolerance: ≤0.1 %
- Linearity Tolerance: ≤0.15 %
- Temperature Coefficient: ± 0.05 %/K (open-circuit)
- Isolation Class: B
- Calibration Tolerance: ±5 %
- Climatic Test: Humid heat, constant (IEC 60068-2-3, Ca)
- Performance: 0.3 W (speed ≥5000 rpm)
- Armature-Circuit Time-Constant: <9 µs
- Open-Circuit Voltage: 10…20 mV per rpm
- Interference Immunity: EN 61000-6-2
- Emitted Interference: EN 61000-6-3
- Approval: CE
Technical Data – Mechanical Design
- Size (Flange): ø89 mm
- Shaft Type: ø12…16 mm (blind hollow shaft), ø17 mm (cone shaft 1:10)
- Protection EN 60529: IP 00, IP 44 (with cover)
- Torque: 0.35 Ncm
- Rotor Moment of Inertia: 0.95 kgcm²
- Material: Housing: stainless steel / plastic, Shaft: stainless steel
- Operating Temperature: -30…+130 °C
- Resistance: IEC 60068-2-6 Vibration 10 g, 10-2000 Hz, IEC 60068-2-27 Shock 100 g, 6 ms
- Weight: Approx. 0.6 kg
- Connection: Plug-in terminals
