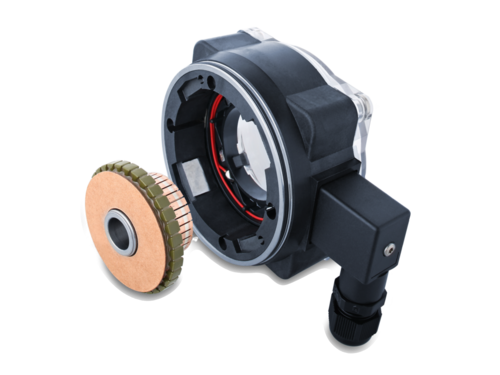

Baumer GTB 9.06 Tachogenerator, a precision device designed for speed measurement in industrial applications. With its robust design and high accuracy, it ensures reliable performance in demanding environments.
The Baumer GTB 9.06 is a tachogenerator used to measure the speed in industrial systems. It offers high accuracy and stability, making it ideal for a variety of applications.
Datasheet
Electrical specifications:
- Supply voltage: 5V to 30V DC
- Output frequency: up to 300 kHz
- Shaft type: Tubular shaft
- Shaft diameter: 9.06 mm
- Measurement method: Optical
- Reference signal: Zero pulse 70…720° electrically (optional)
- Pulse frequency per revolution: 420 pulses per revolution
- Immunity to interference: EN 61000-6-2
- Radiated interference: EN 61000-6-3
- Approvals: CE
Mechanical design:
- Torque: 0.35 Nm
- Rotor moment of inertia: 0.95 gcm²
- Material: Housing: stainless steel / plastic, shaft: stainless steel
- Operating temperature: -30…+130 °C
- Vibration: 10 g, 10-2000 Hz
- Shock: 100 g, 6 ms
- Weight: approx. 0.7 kg
This tachogenerator stands out for its durability and high tolerance to extreme conditions. Whether for continuous operation or dynamic applications, it guarantees exceptional reliability and performance.
