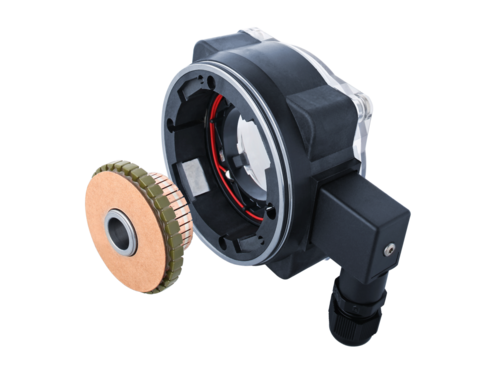

GTB 9.16 Tachogenerator, engineered for high-performance speed measurement.
Featuring IP 68 protection and a connector output, this device operates without the need for auxiliary energy sources.
The GTB 9.16 is a high-performance DC tachogenerator from Baumer, designed for precise speed measurement in demanding industrial environments. It leverages Baumer’s patented LongLife technology, ensuring high signal quality and reliability. This tachogenerator is ideally suited for applications in drive, control, and measurement technology.
With its robust design, the GTB 9.16 guarantees durability even in harsh conditions. Its advanced features include exceptional reversal and linearity tolerance, making it a reliable choice for industrial applications.
Datasheet:
- Reversal Tolerance: ≤0.1 %
- Linearity Tolerance: ≤0.15 %
- Temperature Coefficient: ± 0.05 %/K (open-circuit)
- Isolation Class: B
- Calibration Tolerance: ±5 %
- Climatic Test: Humid heat, constant (IEC 60068-2-3, Ca)
- Performance: 0.3 W (speed ≥5000 rpm)
- Armature-Circuit Time-Constant: <9 µs
- Open-Circuit Voltage: GTB 9.06: 10…20 mV per rpm, GTB 9.16: 60 mV per rpm
- Interference Immunity: EN 61000-6-2
- Emitted Interference: EN 61000-6-3
- Approval: CE
Mechanical Design:
- Size (Flange): ø95 mm
- Shaft Type: ø12…16 mm (blind hollow shaft), ø17 mm (cone shaft 1:10)
- Protection EN 60529: IP 68
- Torque: 0.35 Ncm
- Rotor Moment of Inertia: 0.95 kgcm²
- Material: Housing: stainless steel / plastic; Shaft: stainless steel
- Operating Temperature: -30…+130 °C
- Resistance: IEC 60068-2-6 Vibration 10 g, 10-2000 Hz; IEC 60068-2-27 Shock 100 g, 6 ms
- Weight: Approx. 0.7 kg
- Connection: Connector
