GTF 7.08 Tachogenerator, designed for optimal performance in various industrial applications. With its advanced LongLife technology, it guarantees high signal quality and reliable operation.

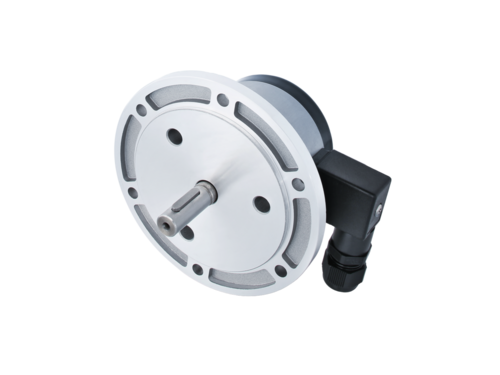

The GTF 7.08 is a high-precision tachogenerator from Baumer, designed to measure rotational speed accurately in industrial environments. It features a solid shaft and a EURO flange B10, ensuring high reliability and performance.
This tachogenerator not only excels in signal quality but also comes with temperature compensation as standard, enhancing its operational reliability across various conditions. Its compact design with low moment of inertia makes it suitable for dynamic applications.
Datasheet:
- Reversal Tolerance: ≤0.1 %
- Linearity Tolerance: ≤0.15 %
- Temperature Coefficient: ± 0.05 %/K (open-circuit)
- Isolation Class: B
- Calibration Tolerance: ±5 %
- Climatic Test: Humid heat, constant (IEC 60068-2-3, Ca)
- Performance: 0.3 W (speed ≥5000 rpm)
- Armature-Circuit Time-Constant: <4 µs
- Open-Circuit Voltage: 10…60 mV per rpm
- Interference Immunity: EN 61000-6-2
- Emitted Interference: EN 61000-6-3
- Approval: CE, CSA
Technical Data – Mechanical Design
- Size (Flange): ø115 mm
- Shaft Type: ø11 mm solid shaft
- Flange: EURO flange B10
- Protection EN 60529: IP 55
- Torque: 1.5 Ncm
- Rotor Moment of Inertia: 0.4 kgcm² (GTF 7.08), 0.6 kgcm² (GTF 7.16)
- Admitted Shaft Load: ≤100 N axial, ≤200 N radial
- Material: Housing: stainless steel / plastic, Shaft: stainless steel
- Operating Temperature: -30…+130 °C
- Resistance: IEC 60068-2-6 Vibration 10 g, 10-2000 Hz, IEC 60068-2-27 Shock 100 g, 6 ms
- Weight: Approx. 0.9 kg (GTF 7.08), 1.1 kg (GTF 7.16)
- Connection: Screw terminal connector
