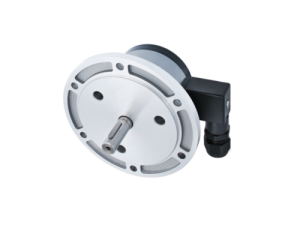

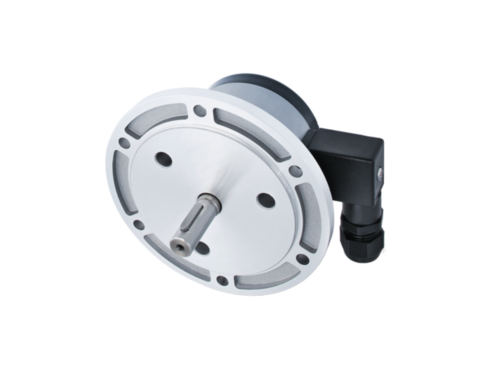

GTF 7.16 DC tachogenerator delivers exceptional performance for precise speed measurement.
Featuring a robust solid shaft design and EURO flange, this tachogenerator is ideal for industrial applications.
The GTF 7.16 is a high-performance DC tachogenerator from Baumer, designed for precise speed measurement in demanding industrial environments. It leverages Baumer’s patented LongLife technology, ensuring high signal quality and reliability.
This advanced tachogenerator is temperature compensated and provides an open circuit voltage of 60 V per 1000 rpm, making it suitable for a wide range of applications.
Datasheet:
- Reversal Tolerance: ≤0.1 %
- Linearity Tolerance: ≤0.15 %
- Temperature Coefficient: ± 0.05 %/K (open-circuit)
- Isolation Class: B
- Calibration Tolerance: ±5 %
- Climatic Test: Humid heat, constant (IEC 60068-2-3, Ca)
- Performance: 0.6 W (speed ≥5000 rpm)
- Armature-Circuit Time-Constant: <4 µs
- Open-Circuit Voltage: 60 V per 1000 rpm
- Interference Immunity: EN 61000-6-2
- Emitted Interference: EN 61000-6-3
- Approval: CE
Mechanical Design:
- Size (Flange): ø115 mm
- Shaft Type: ø11 x 30 mm solid shaft (without key)
- Flange: EURO flange B10
- Protection EN 60529: IP 55
- Torque: 1.5 Ncm
- Rotor Moment of Inertia: 0.6 kgcm²
- Material: Housing: stainless steel / plastic; Shaft: stainless steel
- Operating Temperature: -30…+130 °C
- Resistance: IEC 60068-2-6 Vibration 10 g, 10-2000 Hz; IEC 60068-2-27 Shock 100 g, 6 ms
- Weight: Approx. 1.1 kg
- Connection: Screw terminal connector
