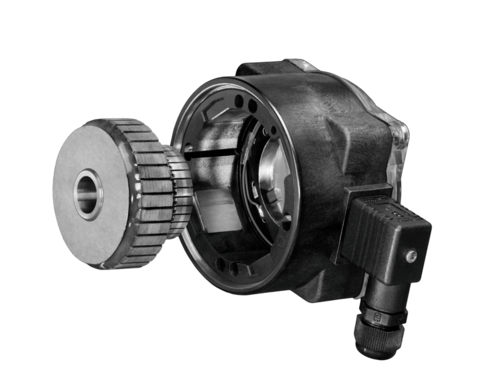

High-performance Baumer GTR 9 Tachogenerator, designed for accurate speed measurement.
- Features an open circuit voltage of 20…60 mV per rpm.
- Durable blind hollow shaft with ø16 mm.
The Baumer GTR 9 is a high-precision tachogenerator designed for speed measurement in industrial applications. It is highly accurate and reliable, making it ideal for a wide range of industrial applications.
Datasheet
Electrical characteristics:
- Reverse tolerance: ≤0.1 %
- Linearity: ≤0.15 %
- Temperature coefficient: ± 0.05 %/K (open circuit), option: 0.005 %/K
- Insulation class: B
- Calibration tolerance: ±5 %
- Climate test: Moist heat, constant (IEC 60068-2-3, Ca)
- Power consumption: 0.9 W (speed ≥5000 rpm)
- Time constant of the armature circuit: <5 µs
- Open circuit voltage: 20…60 mV per rpm
- Immunity to interference: EN 61000-6-2
- Radiated interference: EN 61000-6-3
- Approvals: CE
Mechanical design:
- Size (flange): ø95 mm
- Shaft type: ø16 mm (blind hollow shaft)
- Protection according to EN 60529: IP 56
- Torque capacity: 0.35 Ncm
- Rotor moment of inertia: 1.95 kgcm²
- Material: Housing: stainless steel / plastic, shaft: stainless steel
- Operating temperature: -30…+130 °C
- Vibration: IEC 60068-2-6, 10 g, 10-2000 Hz
- Shock: IEC 60068-2-27, 100 g, 6 ms
- Weight: approx. 1.1 kg
- Connection: Connector
Designed for durability, the Baumer GTR 9 ensures high signal quality thanks to its patented LongLife technology, making it a reliable choice for demanding environments. Its robust mechanical design allows for operation in a wide temperature range, providing versatility in various industrial settings.
