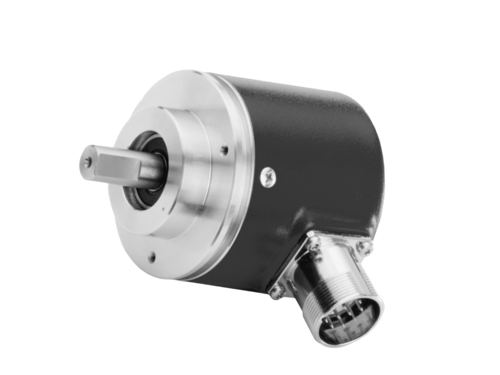

Baumer GXM7W – RS485, an advanced absolute encoder designed for precision and reliability in industrial applications. This encoder features an optical sensing method and offers high resolution for accurate position detection.
The Baumer GXM7W – RS485 is an absolute encoder with optical measurement method used for precise position and speed detection in industrial applications. It offers high accuracy and reliability, making it ideal for a variety of applications.
With a robust design and a variety of features, this encoder operates efficiently in challenging environments. The encoder supports multiple bus users and is designed for easy integration into existing systems. Additionally, its compact and energy-efficient design makes it suitable for long-term projects.
Datasheet
Electrical specifications:
- Supply voltage: 10…30 VDC
- Reverse polarity protection: Yes
- Consumption without load: ≤50 mA (24 VDC)
- Initialization time: typically 250 ms after switching on
- Interface: RS485
- Function: Multiturn
- Data transfer rate: 38.4 kbaud
- Address of the device: Encoded by connection
- Steps per revolution: 8192 / 13 bits
- Number of revolutions: 4096 / 12 bits
- Absolute accuracy: ±0.025°
- Measurement method: Optical
- Code: Binary
- Code sequence: CW/CCW, coded by connection
- Output stages: RS485
- Immunity to interference: EN 61000-6-2
- Radiated interference: EN 61000-6-4
- Approval: UL approval / E63076
