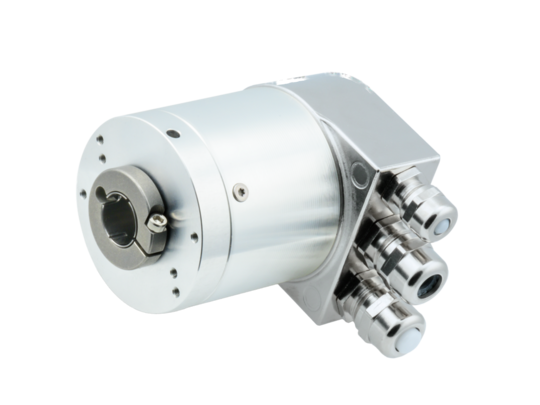

Baumer GXMMS

Absolute encoders of the GXMMS series from Baumer are designed for accurate angular position measurement.

Datasheet:

• Reverse polarity protection: Yes
• Consumption w/o load: ≤100 mA (24 VDC)
• Initializing time typ.: 250 ms after power on
• Interface: Profibus-DPV0/V2
• Function: Multiturn
• Device address: Rotary switch in bus cover (type-specific)
• Steps per revolution: ≤8192 / 13 bit
• Number of revolutions: ≤65536 / 16 bit
• Absolute accuracy: ±0.025 °
• Sensing method: Optical
• Incremental output: 2048 pulses A90°B (optional)
• Interference immunity: EN 61000-6-2
• Emitted interference: EN 61000-6-4
• Programmable parameters: Steps per revolution, number of revolutions, preset, scaling, rotating direction
• Diagnostic function: Position or parameter error, multiturn sensing
• Status indicator: DUO-LED integrated in bus cover
• Approval: UL approval / E63076
• Shaft type: ø12…15 mm (blind hollow shaft)
• Protection EN 60529: IP 54, IP 65
• Operating speed: ≤6000 rpm (mechanical), ≤6000 rpm (electric)
• Starting acceleration: ≤1000 U/s²
• Starting torque: ≤0.015 Nm (+25 °C, IP 54), ≤0.03 Nm (+25 °C, IP 65)
• Rotor moment of inertia: 20 gcm²
• Material: Housing: steel, Flange: aluminium, Bus cover: zinc die-cast
• Operating temperature: -25…+85 °C, -40…+85 °C (optional)
• Vibration: 10 g, 16-2000 Hz (EN 60068-2-27)
• Shock: 200 g, 6 ms
• Weight approx.: 500 g
• Connection: Cable gland, Connector 3xM12

This encoder is built to withstand harsh conditions, ensuring longevity and performance stability. Its optical sensing method and multiturn functionality make it a versatile choice for various industrial applications.
