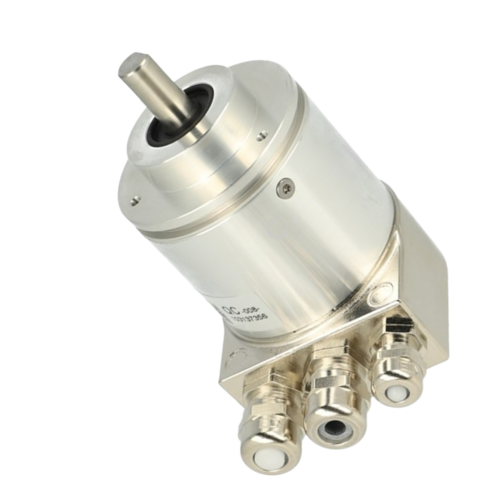

GXMMW A203P32, a high-performance absolute optical encoder designed for precision and reliability.
With a voltage supply range of 10…30 VDC and reverse polarity protection, this encoder is ideal for various applications.
The GXMMW A203P32 from Baumer is an absolute encoder with multi-turn measurement that uses an optical reading method. It is equipped with a Profibus-DP interface and is highly resistant to magnetic fields.
This encoder boasts a resolution of 13 bits for single-turn and 16 bits for multi-turn measurement, ensuring high accuracy in performance. The initialization time is approximately 250 ms after switching on, allowing for quick deployment in your systems.
Datasheet:
- Resolution: 13 bits for single-turn measurement, 16 bits for multi-turn measurement.
- Interface: Profibus-DP.
- Supply voltage: 10…30 VDC.
- No-load consumption: ≤100 mA (24 VDC).
- Initialization time: approximately 250 ms after switching on.
- Shaft type: solid shaft with a diameter of 10 mm (clamping flange) or 6 mm (synchronous flange).
- Protection: IP 54 (without shaft seal), IP 65 (with shaft seal).
- Operating speed: up to 10000 rpm (mechanical), up to 6000 rpm (electric).
- Body material: steel, flange: aluminum, cover: zinc alloy.
- Operating temperature: -25 to +85 °C (optionally -40 to +85 °C).
Advantages:
- High accuracy: absolute accuracy ±0.025°.
- Programmable parameters: number of steps per revolution, number of revolutions, scaling, direction of rotation.
- Vibration and shock resistance: complies with EN 60068-2-6 (vibration) and EN 60068-2-27 (shock).
- Status indication: integrated DUO-LED.
- Resistance to chemicals and temperature.
