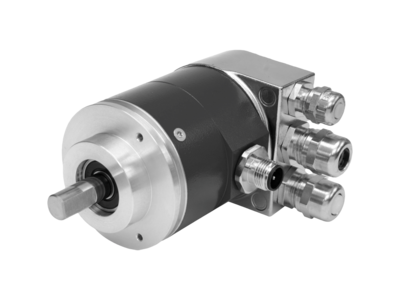

GXMMW.A203P33 is a high-precision absolute encoder designed for accurate angular position measurement. With a robust construction and multiple output options, it is ideal for various industrial applications.
The GXMMW.A203P33 is a high-precision absolute encoder with an optical principle of operation developed by Baumer. It is used to accurately measure the angular position of a shaft in a wide range of industrial applications.
Datasheet:
- Encoder type: Absolute, single-turn/multi-turn
- Operating principle: Optical
- Measuring range: 0°…360° (single-turn) / 0°…n*360° (multiple)
- Resolution: 1024…16384 imp/rev
- Maximum rotation speed: 6000 rpm
- Output signal: SSI, Profibus-DP, CANopen, EtherCAT
- Supply voltage: 10…30 V DC
- Current consumption: ≤ 100 mA
- Degree of protection: IP65
- Operating temperature: -40°C…+85°C
- Housing material: Aluminum
- Weight: 300 g
Advantages of use:
- High accuracy: Provides accurate measurement of the angular position of the shaft.
- Reliability: It has a robust design and IP65 rating, making it resistant to dust and moisture.
- Versatility: Available with various types of output signals and can be used in a wide range of applications.
- Easy installation: Easy to install and configure.
With its advanced features and reliable performance, the GXMMW.A203P33 is the perfect choice for any precision measurement needs.
