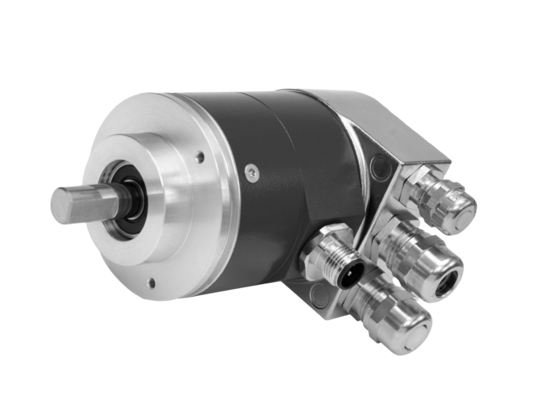

Baumer GXMMW + incremental

GXMMW + incremental from Baumer is an absolute encoder with multiturn and incremental output.

This encoder features multiple interfaces, including CANopen® and EtherCAT, ensuring compatibility with various systems.

Designed for high performance, it provides excellent accuracy and robustness against interference, making it ideal for demanding applications.

With its durable construction and versatile operational capabilities, the GXMMW + incremental is a reliable choice for industries requiring precision and reliability.

Datasheet:

• Interfaces: CANopen®, EtherCAT, EtherNet/IP, Profibus, PROFINET, SAE J1939, SSI1.

• Functions: Multiturn (multiturn) mode.

• Device address: Rotary switch in bus cover (typical).

• Steps per revolution: ≤8192 / 13 bits.

• Number of revolutions: ≤65536 / 16 bits.

• Absolute accuracy: ±0.025°.

• Reading method: Optical.

• Output cascades: Push-pull, short-circuit protection, RS422.

• Incremental output: 2048 pulses A90°B + inversion.

• Immunity to interference: EN 61000-6-2.

• Radiated interference: EN 61000-6-4.

• Shaft type: Ø10 mm solid shaft (clamping flange), Ø6 mm solid shaft (synchronized flange).
• Flange: Clamping flange or synchronous flange.
• Protection: EN 60529 IP 54 (without shaft seal), IP 65 (with shaft seal).
• Rotation speed: ≤10000 rpm (mechanical), ≤6000 rpm (electric).
• Starting torque: ≤0.01 Nm (+25 °C, IP 54), ≤0.015 Nm (+25 °C, IP 65).
• Moment of inertia of the rotor: 20 gsm².
• Permissible load on the shaft: ≤20 N axial, ≤40 N radial.
• Material: Body – steel, flange – aluminum, tire cover – aluminum.
• Operating temperature: -25…+85 °C, optionally -40…+85 °C1.
• Relative humidity: 95% non-condensing.
• Vibration resistance: EN 60068-2-6, 10 g, 16-2000 Hz.
• Impact resistance: EN 60068-2-27, 200 g, 6 ms.
• Weight: Approximately 670 g
