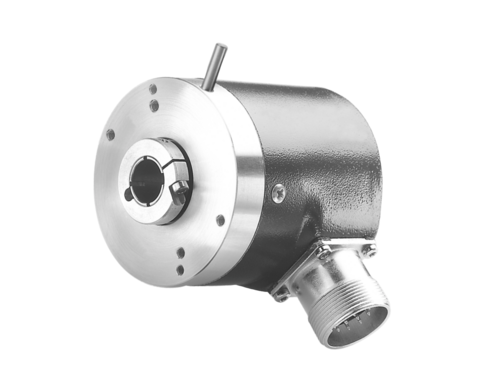

Baumer GXP5S – CANopen®

The GXP5S – CANopen® is an absolute encoder with a hollow shaft up to ø15 mm in diameter and a Synchro flange. It supports single and multi-turn resolution, making it ideal for a variety of industrial applications.

Datasheet

Electrical Specifications:

• Supply voltage: 10…30 VDC
• No-load consumption: ≤50 mA (24 VDC)
• Pulse frequency: 1024…16384 per revolution
• Tracking method: Optical
• Output signals: A (90°), B, N (inverted)
• Interference resistance: EN 61000-6-2
• Radiated interference: EN 61000-6-4
• Approvals: UL approval / E63076

Mechanical design:

• Size (flange): ø58 mm
• Shaft type: ø12…15 mm (hollow shaft)
• Protection EN 60529: IP 54 (without shaft cover), IP 65 (with shaft cover)
• Rotational speed: ≤10,000 rpm (mechanical), ≤6000 rpm (electrical)
• Material:
• Body: steel
• Flange: aluminum
• Cable socket body: zinc cast
• Operating temperature: -25…+85 °C (24 VDC), -40…+85 °C (optional)
• Relative humidity: 95 % non-condensing
• Resistance:
• Vibration: EN 60068-2-6, 10 g, 16-2000 Hz
• Shock: EN 60068-2-27, 100 g, 4 ms
• Connection: Cable socket or M12 connector
• Weight: approx. 600 g

Advantages:

• High accuracy: Provides precise speed measurement thanks to optical tracking.
• Resistant to conditions: Operates in a wide range of temperatures and humidity, allowing it to be used in a variety of environments.
• Rugged design: Highly resistant to vibrations, shocks, and industrial environments.
• Energy efficiency: Minimal power consumption reduces energy costs, which is important for long-term projects.
• Protection: High protection level of up to IP 65, making it suitable for use in wet and dust environments.

This encoder stands out due to its robust design and versatility, making it a reliable choice for demanding applications in various industries.
