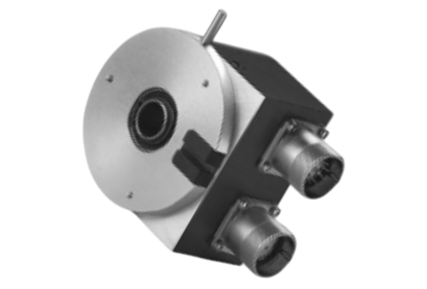

Baumer GXP6H – Interbus, a highly reliable absolute encoder designed for precision applications.
With a compact flange size of ø58 mm and a hollow shaft of ø14 mm, it integrates easily into various systems.
The GXP6H – Interbus is an absolute encoder with a hollow shaft diameter of ø14 mm and an Interbus type flange. It supports single- and multi-turn resolution, making it flexible and easy to integrate into a variety of systems.
This encoder excels in delivering high accuracy and performance, ensuring reliable speed measurement through its advanced optical tracking method.
It is designed to withstand extreme environmental conditions, boasting a robust construction suitable for both industrial and outdoor applications.
Datasheet
Electrical Specifications:
- Supply voltage: 10…30 VDC
- No-load consumption: ≤50 mA (24 VDC)
- Pulse frequency: 1024…16384 per revolution
- Tracking method: Optical
- Output signals: A (90°), B, N (inverted)
- Interface: Interbus
- Radiated interference: EN 61000-6-4
- Approval: UL approval / E63076
Mechanical design:
- Protection EN 60529: IP 54 (without shaft seal), IP 65 (with shaft seal)
- Rotation speed: ≤10,000 rpm (mechanical), ≤6000 rpm (electrical)
- Initial acceleration: ≤1000 U/s²
- Initial torque: ≤0.015 Nm (+25 °C, IP 54), ≤0.03 Nm (+25 °C, IP 65)
- Rotor moment of inertia: 20 gcm²
- Permissible load on the shaft: ≤20 N on the axis, ≤40 N on the radius
- Operating temperature: -25…+85 °C, -40…+85 °C (optional)
- Relative humidity: 95 % without condensation
- Resistance:
- Vibration: EN 60068-2-6, 10 g, 16-2000 Hz
- Shock: EN 60068-2-27, 200 g, 6 ms
- Connection: Cable socket or M12 connector
- Weight: approx. 500 g
Advantages:
- High accuracy: Provides precise speed measurement thanks to optical tracking.
- Flexibility in customization: Support for Interbus interface makes it easy to integrate the encoder into existing systems.
- Resistant to conditions: Operates in a wide range of temperatures and humidity, allowing it to be used in a variety of environments.
- Rugged design: Highly resistant to vibrations, shocks and industrial environment conditions.
- Protection: High level of protection up to IP 65, making it suitable for use in wet and dust environments.
