Baumer GXP6W – Interbus

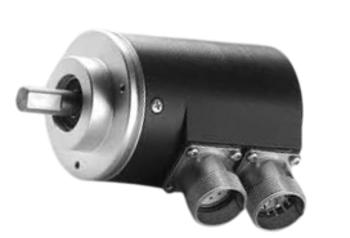

The GXP6W-Interbus is an absolute encoder with a ø14 mm hollow shaft and an Interbus flange. It supports single- and multi-turn resolution, making it flexible and easy to integrate into a variety of systems.

Datasheet

Electrical Specifications:

• Supply voltage: 10…30 VDC
• No-load consumption: ≤50 mA (24 VDC)
• Pulse frequency: 1024…16384 per revolution
• Tracking method: Optical
• Output signals: A (90°), B, N (inverted)
• Interface: Interbus
• Radiated interference: EN 61000-6-4
• Approval: UL approval / E63076

Mechanical design:

• Protection EN 60529: IP 54 (without shaft seal), IP 65 (with shaft seal)
• Rotation speed: ≤10,000 rpm (mechanical), ≤6000 rpm (electrical)
• Initial acceleration: ≤1000 U/s²
• Initial torque: ≤0.015 Nm (+25 °C, IP 54), ≤0.03 Nm (+25 °C, IP 65)
• Rotor moment of inertia: 20 gcm²
• Permissible load on the shaft: ≤20 N on the axis, ≤40 N on the radius
• Operating temperature: -25…+85 °C, -40…+85 °C (optional)
• Relative humidity: 95 % without condensation
• Resistance:
• Vibration: EN 60068-2-6, 10 g, 16-2000 Hz
• Shock: EN 60068-2-27, 200 g, 6 ms
• Connection: Cable socket or M12 connector
• Weight: approx. 500 g

Advantages:

• High accuracy: Provides accurate RPM measurement through optical tracking method.
• Flexibility in customization: Interbus support makes it easy to integrate the encoder into existing systems.
• Resistant to conditions: Operates in a wide range of temperatures and humidity, allowing it to be used in a variety of environments.

This encoder is perfect for applications requiring high precision and adaptability, ensuring optimal performance in diverse environments.
