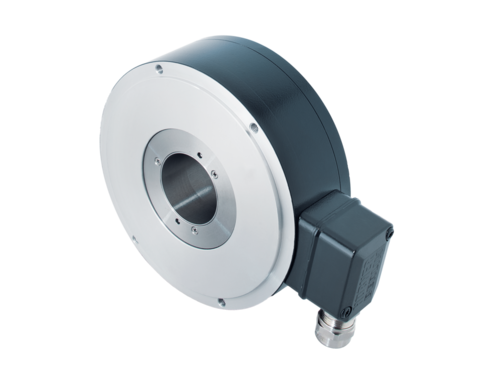

Baumer HG 16, an advanced incremental encoder designed for precision and reliability. This encoder features optical sensing technology, ensuring high performance in various applications.
The HG 16 is a bearingless incremental encoder from Baumer that uses optical sensing to ensure high accuracy and reliability.
Datasheet:
- Supply voltage: 9…30 VDC, 5 VDC ±5 %, 9…26 VDC
- No-load consumption: ≤100 mA
- Pulses per revolution: 250 … 2048
- Reference signal: Zero pulse, 90° width
- Reading method: Optical
- Output signal frequency: ≤120 kHz
- Phase shift: 90° ±20°
- Duty cycle: 40…60 %
- Output signals: K1, K2, K0 + inverted
- Output stages: HTL, TTL/RS422
- Protection: IP 56 (≤9000 rpm), IP 54 (≤12000 rpm), IP 23 (≤30000 rpm)
- Rotation speed: ≤9000 rpm (IP 56), ≤12000 rpm (IP 54), ≤30000 rpm (IP 23)
- Starting torque: 1 Nm
- Material: Housing – aluminum, shaft – stainless steel
- Rotor moment of inertia: 8.5 kgcm²
- Operating temperature: -30…+100 °C
- Vibration resistance: 10 g, 10-2000 Hz (IEC 60068-2-6)
- Resistance to shocks: 100 g, 6 ms (IEC 60068-2-27)
- Weight: approx. 2.4 kg
- Connections: Terminal box or M23 flange connector, 12-pin
Advantages:
- High accuracy: Optical reading provides an accuracy of up to 2048 pulses per revolution.
- Reliability: High resistance to vibrations and shocks, short circuit protection.
- Flexibility: Supports various connection options and output signals.
- Durability: Robust aluminum housing ensures durability and reliability in industrial environments.
This encoder is ideal for applications requiring precise measurements and is built to withstand harsh conditions. With its advanced features and robust construction, the Baumer HG 16 is a reliable choice for your incremental encoding needs.
