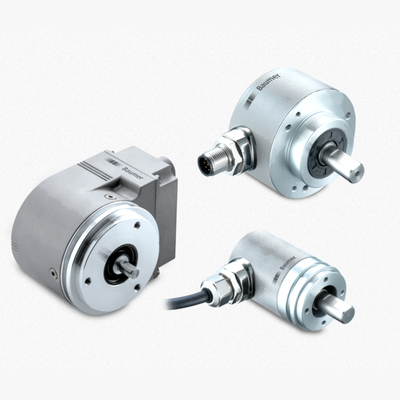

Through Hollow Shaft Encoder Absolute, designed with a magnetic sensing method for precise measurement. Its innovative Energy Harvesting technology enables multiturn sensing without the need for gears or batteries.
The Through Hollow Shaft Encoder Absolute is engineered for high-performance applications. With a robust two-sided bearing system featuring hybrid bearings, it ensures longevity and reliability in demanding environments. This encoder is equipped with special corrosion protection (CX, C5-M), making it suitable for harsh conditions. Additionally, it offers a wide voltage supply range of 10…30 VDC and a transmission rate of 100 MBaud, enhancing its versatility and usability in various industrial applications.
| Baumer Article no | 11004078 |
| Voltage supply | 10…30 VDC |
| Short-circuit proof | Yes |
| Consumption w/o load | 200 mA |
| Initializing time | 500 ms after power on |
| Interface | PROFINET |
| Function | Multiturn |
| Transmission rate | 100 MBaud |
| Device address | Automatic address designation |
| Steps per revolution | 8192 / 13 bit |
| Number of revolutions | 65536 / 16 bit |
| Additional outputs | Square-wave TTL/HTL,TTL/RS422 |
| Sensing method | Magnetic |
| Interference immunity | EN 61000-6-2 |
| Emitted interference | EN 61000-6-3 |
| Programmable parameters | Steps per revolution, Number of revolutions, Preset, scaling, rotating direction |
| Diagnostic function | Position or parameter error |
| Status indicator | DUO-LED and LEDs link/activity in bus connecting box, 4 LEDs in device back side |
| Approval | CEUL approval / E217823EAC |
| Switching accuracy | В± 2 % (or 1 Digit) |
| Switching outputs | 1 output (Open collector, solid state relay on request) |
| Output switching capacity | 30 VDC; ≤100 mA |
| Switching delay time | 20 ms |
| Size (flange) | Ø105 mm |
| Shaft type | Ø16…20 mm (through hollow shaft) |
| Flange | Support plate, 360° freely positionable |
| Protection EN 60529 | IP 66/IP 67 |
| Operating speed | 6000 rpm |
| Range of switching speed | ns (off) = В±2…6000 rpm |
| Operating torque typ. | 10 Ncm |
| Rotor moment of inertia | 950 gcm² |
| Admitted shaft load | 450 N axial, 650 N radial |
| Material | Housing: aluminium alloy, Shaft: stainless steel |
| Corrosion protection | IEC 60068-2-52 Salt mist for ambient conditions CX (C5-M) according to ISO 12944-2 |
| Operating temperature | -40…+85 °C |
| Relative humidity | 95 % non-condensing |
| Resistance | IEC 60068-2-6 Vibration 30 g, 10-2000 Hz; IEC 60068-2-27 Shock 400 g, 1 ms |
| Weight approx. | 2.2 kg (depending on version) |
| Connection | Bus connecting box, Terminal box incremental |
