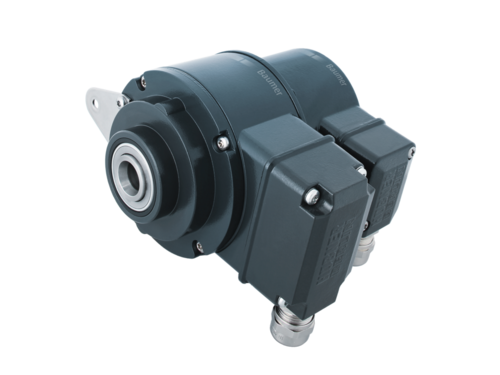

HOG 10 DN 1024 I is a high-performance incremental encoder designed for precise speed measurements.
Featuring an HTL output driver, it supports cable lengths of up to 350 m and is built for durability with a hybrid bearing system.
The HOG 10 DN 1024 I is an incremental encoder with optical sensing used for speed measurement. It is highly accurate and resistant to contamination, making it ideal for a variety of industrial applications.
This encoder ensures reliable performance even in challenging environments, with a robust design that includes a double-side bearing for extended service life.
Datasheet:
- Supply voltage: 9…30 VDC
- No-load power consumption: ≤100 mA
- Number of pulses per revolution: 1024
- Phase shift: 90° ± 20°
- Rotational frequency: ≤120 kHz
- Output signals: K1, K2, K0 + inverted
- Sensing method: Optical
- Type of output stages: HTL-P (high power linear driver)
- Flange size: ø105 mm
- Shaft type: ø16 mm (closed hollow shaft)
- Permissible shaft load: ≤450 N axially, ≤600 N radially
- Protection: IP 66 (EN 60529)
- Operating temperature range: -40…+100 °C
- Material: Housing – aluminum, shaft – stainless steel
Advantages:
- High accuracy: System accuracy up to 0.5°.
- Resistance to contamination: High resistance to dust and other contaminants
- Small size: Provides the ability to install in confined spaces
- High resistance to vibrations: Complies with EN 60068-2-6 and EN 60068-2-27 standards
