Out of stock

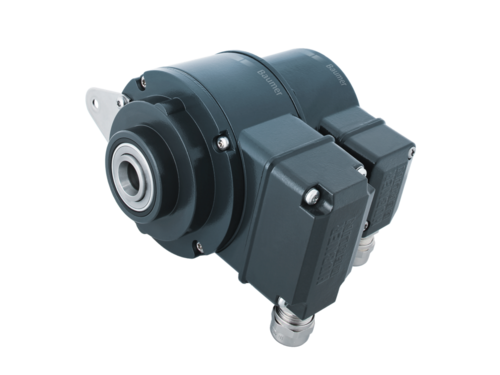

Baumer HOG 10 + FSL, a reliable combined incremental encoder designed for precision in industrial applications. With its TTL output driver and mechanical speed monitoring, it ensures optimal performance even in demanding environments.
The Baumer HOG 10 + FSL is a combined incremental encoder with integrated centrifugal switch that provides high accuracy and reliability in industrial applications.
This encoder is designed to withstand harsh conditions, making it suitable for various environments. Its hybrid bearing ensures a longer service life, while the IP 66 protection level allows for use in wet and dusty conditions. With a wide operating temperature range of -40…+100 °C, it remains functional in extreme scenarios.
Datasheet
Electrical specifications:
- Supply voltage: 9…30 VDC or 5 VDC ±5 %.
- No-load consumption: ≤100 mA
- Pulses per revolution: 300 … 5000
- Phase shift: 90 ° ±20°
- Duty cycle: 40…60 %
- Reference signal: Zero pulse, 90° width
- Output frequency: ≤120 kHz
- Output signals: K1, K2, K0 + inversion
- Output stages: HTL-P (high-power linear driver), TTL/RS422
- Interference resistance: EN 61000-6-2
- Radiated interference: EN 61000-6-3
- Approvals: CE
