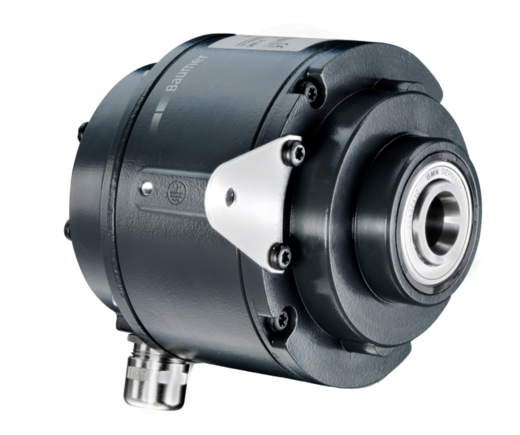

Discover the HOG 100 Incremental Encoder – a high-resolution solution designed for precision applications. With options for blind hollow or tapered shafts, it offers versatility and reliability.
The HOG 100 incremental encoders are equipped with an optical reading method and are available with a 16 mm diameter blind hollow shaft or a 17 mm diameter tapered shaft (1:10).
This encoder features a supply voltage range of 9…30 VDC, ensuring compatibility with various systems. Its robust design includes a hybrid bearing for an extended service life and protection rated at IP 66, making it suitable for harsh environments.
With a wide range of pulses per revolution from 1024 to 10000 and an output frequency of up to 250 kHz, the HOG 100 is perfect for high-performance applications. The encoder is also designed for easy installation with a large terminal box that can be rotated or covered axially.
