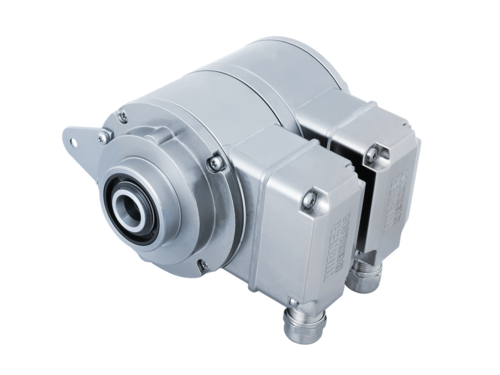

Baumer HOG 11 G

The Baumer HOG 11 G is a high-precision incremental encoder with optical measurement that is used to determine the number of revolutions and position in industrial systems.

Datasheet:

Electrical specifications:

• Supply voltage: 9…30 VDC or 5 VDC ±5 %.
• No-load consumption: ≤100 mA
• Number of pulses per revolution: 300 … 5000
• Phase shift: 90° ± 20°
• Duty cycle: 40…60 %
• Counting signal: Zero pulse, 90° width
• Output frequency: ≤120 kHz or ≤300 kHz (on request)
• Output signals: K1, K2, K0 + inverted
• Error output (EMS option):
• Output stages: HTL-P (power linedriver), TTL/RS422
• Measurement method: Optical
• Shaft insulation: Suitable for up to 2.8 kV
• Transmission length: ≤350 m at 100 kHz (HTL-P), ≤550 m at 100 kHz (TTL)
• Immunity to interference: EN 61000-6-2
• Radiated interference: EN 61000-6-3
• Approvals: CE, UL approval / E217823

Mechanical design:

• Size (flange): ø105 mm
• Shaft type: ø16…20 mm (blind hollow shaft), ø17 mm (1:10 tapered shaft)
• Permissible shaft load: ≤450 N axial, ≤600 N radial
• Protection according to EN 60529: IP 67
• Operating speed: ≤6000 rpm (mechanical)
• Operating torque: typically 6 Ncm
• Rotor moment of inertia: 340 gcm²
• Material: Housing: cast aluminum, shaft: stainless steel
• Operating temperature: -40…+100 °C (-25…+100 °C at >3072 pulses)
• Vibration: IEC 60068-2-6, 20 g, 10-2000 Hz
• Shock: IEC 60068-2-27, 300 g, 6 ms
• Corrosion resistance: IEC 60068-2-52, salt spray for environmental conditions CX (C5-M) according to ISO 12944-2
• Protection against explosion: II 3 G Ex ec IIC T4 Gc (gas), II 3 D Ex tc IIIC T135°C Dc (dust) (only with ATEX option)
• Connection: 2x terminal box, 4x terminal box (with M option)
• Weight: approx. 2.9 kg, 3.3 kg (with option M)

Advantages:

• High accuracy: Provides accurate speed measurement, which is critical for many industrial applications.
• Resistant to conditions: Operates in a wide range of temperatures and humidities, allowing it to be used in a variety of environments.
• Compact design: Facilitates installation and use in confined spaces.
• Energy efficiency: Minimal power consumption reduces energy costs, which is an important factor for long-term projects.
• Reliability: High resistance to vibrations and shocks ensures stable operation in industrial environments.
