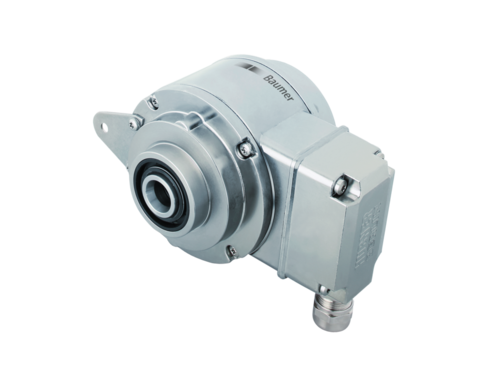

HOG 11, a robust incremental encoder designed for high performance in challenging environments. With features like a blind hollow shaft and exceptional protection rating of IP 67, it ensures reliable operation in offshore and saltwater conditions.
The HOG 11 is a high-performance incremental encoder from Baumer, engineered for precise position and speed measurement in demanding industrial environments. It features an optical sensing method and is built to withstand harsh conditions, making it suitable for applications requiring high durability and reliability.
This encoder is perfect for situations where accuracy is crucial, offering a voltage supply range of 9…30 VDC and a maximum output frequency of up to 300 kHz on request. With its innovative design, it is capable of handling significant shaft loads while maintaining a compact form factor.
Datasheet:
- Voltage Supply: 9…30 VDC, 5 VDC В±5 %
- Consumption w/o Load: ≤100 mA
- Pulses per Revolution: 300…5000
- Phase Shift: 90° В±20°
- Duty Cycle: 40…60 %
- Reference Signal: Zero pulse, width 90°
- Sensing Method: Optical
- Output Frequency: ≤120 kHz, ≤300 kHz (on request)
