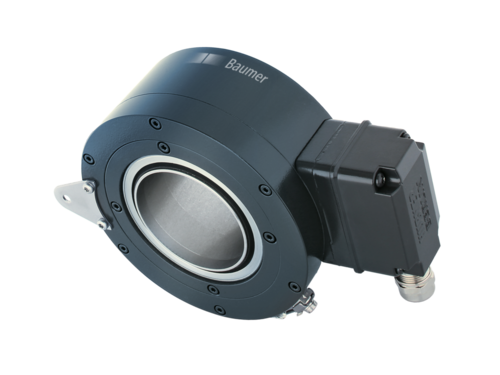

Baumer HOG 163 DN 1024 I

The Baumer HOG 163 DN 1024 I is an incremental encoder with optical measurement method designed for industrial applications where high accuracy and reliability are required. This encoder has a compact and robust aluminum housing that is highly resistant to vibrations and shocks.

Engineered to withstand harsh environments, it features an IP 56 protection rating, ensuring durability. Its optical measurement method guarantees exceptional precision, making it ideal for critical position control applications.

Datasheet:

• Supply voltage: 9…30 VDC
• No-load consumption: ≤100 mA
• Steps per revolution: 1024
• Phase shift: 90° ± 20°
• Efficiency: 40…60 %
• Output signal: Zero pulse, 90° width
• Measurement method: Optical
• Output frequency: ≤120 kHz
• Output signals: K1, K2, K0 + inverted
• Output stages: HTL
• Resistance to interference: EN 61000-6-2
• Radiated interference: EN 61000-6-3
• Approvals: CE, UL approval / E217823

Technical data:

• Size (flange): ø158 mm
• Shaft type: ø70 mm (through hollow shaft)
• Protection according to EN 60529: IP 56
• Operating speed: ≤6000 rpm (mechanical)
• Operating torque: 17 Ncm
• Rotor moment of inertia: 28.5 kgcm² (ø50)
• Material: Housing: aluminum alloy, shaft: stainless steel
• Operating temperature: -40…+85 °C
• Resistance: EN 60068-2-6, Vibration 10 g, 10-2000 Hz; EN 60068-2-27, Impact 100 g, 6 ms
• Corrosion protection: IEC 60068-2-52 Salt mist for environmental conditions C4 according to ISO 12944-2
• Connection: Terminal box
• Weight: approx. 3.5 kg (ø75)

Advantages:

• High accuracy: Provides precise position measurement in 1024 rotation steps.
• Vibration and shock resistance: High resistance to vibrations and shocks ensures reliability in industrial environments.
• Optical measurement method: Ensures high reliability and accuracy of measurement.
• IP 56 protection: Robust protection ensures long-lasting operation even in harsh environments.
