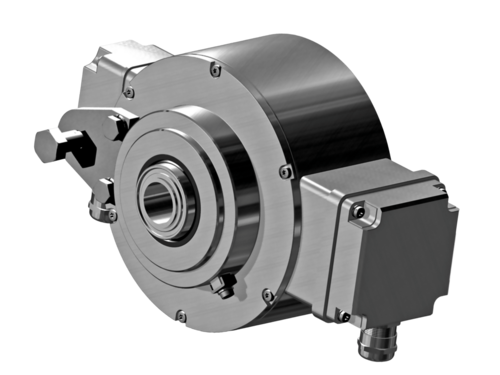

Baumer HOG 165 + DSL.E incremental encoder. Ideal for industrial applications, it offers programmable features and robust design.
The Baumer HOG 165 + DSL.E is a combined incremental encoder with programmable digital speed switch. This encoder uses an optical measurement method and is ideal for industrial applications where precision and robustness are required.
It supports a wide range of pulses per revolution and features both TTL and HTL logic levels for versatility. The durable construction ensures reliable performance in challenging environments.
Datasheet
Electrical Specifications:
- Supply voltage: 9…30 VDC
- No-load consumption: ≤200 mA
- Number of pulses per revolution: 512…4096
- Phase shift: 90° ± 20°
- Torque range: 40…60 %
- Counting signal: Zero pulse, 90° width
- Output frequency: ≤120 kHz
- Output signals: K1, K2, K0 + inverted
- Output stages: HTL, TTL/RS422
- Interference resistance: EN 61000-6-2
- Radiated interference: EN 61000-6-3
- Approvals: CE, UL approval
