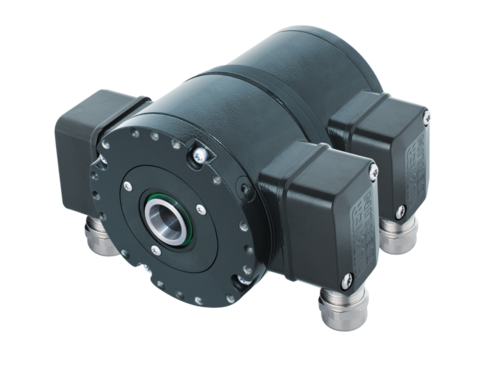

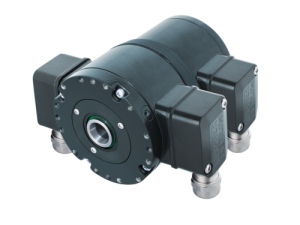

Baumer HOG 86+ FSL, an advanced incremental encoder featuring an integrated centrifugal switch. This encoder offers precise mechanical speed monitoring and robust design for industrial applications.
The Baumer HOG 86+ FSL is an incremental encoder with integrated centrifuge switch designed for industrial applications where high accuracy and reliability are required. This encoder has a robust and compact aluminum housing that provides high resistance to vibrations and shock.
It is engineered to withstand a maximum shaft load of up to 450 N and offers exceptional shaft insulation rated at 2.8 kV. The encoder’s two-sided bearing system ensures optimal performance and durability.
Datasheet:
Electrical parameters:
- Supply voltage: 9…30 VDC; 5 VDC ±5 %.
- Consumption without load: ≤100 mA
- Steps per revolution: 500 … 5000
- Phase shift: 90° ± 20°
- Duty cycle ratio: 45…55 % (40…60 % >3072 pulses)
- Reference signal: Zero pulse, 90° width
- Measurement method: Optical
- Output frequency: ≤120 kHz (standard), ≤300 kHz (on request)
- Output signals: K1, K2, K0 + inverted, Error output (EMS option)
- Output stages: HTL-P (power linedriver), TTL/RS422
- Protection against interference: EN 61000-6-2
- Radiated interference: EN 61000-6-3
- Approvals: CE, UL approval / E217823
