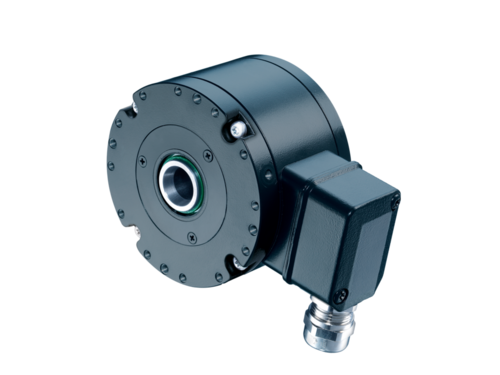

HOG 86 Incremental Encoder, designed with an insulated blind hollow shaft and a cone shaft for robust performance.
With a high shaft load capacity and superior operating speed, this encoder is perfect for demanding applications.
The Baumer HOG 86 is a heavy-duty incremental encoder that stands out for its reliability and high accuracy.
This encoder features a supply voltage range of 9…30 VDC, with a no-load consumption of ≤100 mA, ensuring efficient operation.
It also offers a variety of output signals and stages, making it versatile for different applications. The HOG 86 is designed to withstand harsh conditions, including high temperatures and corrosion resistance.
Datasheet
Electrical characteristics:
- Supply voltage: 9…30 VDC or 5 VDC В±5 %
- No-load consumption: ≤100 mA
- The number of pulses per revolution: 500 … 5000
- Phase shift: 90° В±20°
- Duty cycle: 45…55% (40…60% for more than 3072 pulses)
- Reference signal: Zero pulse, width 90°
- Measurement method: Optical
- Output frequency: ≤120 kHz (up to 300 kHz on request)
- Output signals: K1, K2, K0 + inverted, false output (EMS option)
- Output stages: HTL-P (power line driver), TTL/RS422
- Shaft insulation: Up to 2.8 kV
- Transmission length: ≤350 m at 100 kHz (HTL-P), ≤550 m at 100 kHz (TTL)
- Interference resistance: EN 61000-6-2
- Radiated interference: EN 61000-6-3
- Approval: CE, UL approval / E217823
