Baumer HOG9 DN 2048 I 17K

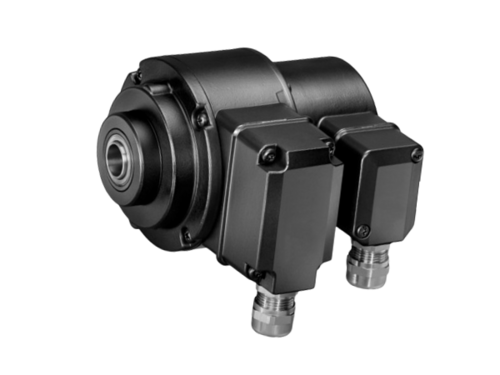

The Baumer HOG9 DN 2048 I 17K is an incremental encoder that stands out for its robustness and high accuracy. This encoder is ideal for applications where it is important to ensure reliable operation in industrial environments.

Datasheet

Electrical specifications:

• Supply voltage: 9…30 VDC or 5 VDC ±5 %.
• No-load consumption: ≤100 mA
• Number of pulses per revolution: 2048
• Phase shift: 90° ± 20°
• Duty cycle: 40…60 %
• Counting signal: Zero pulse, 90° width
• Measurement method: Optical
• Output frequency: ≤120 kHz (up to 300 kHz on request)
• Output signals: K1, K2, K0 + inverted
• Output stages: HTL-P (high-power linear driver), TTL/RS422
• Interference resistance: EN 61000-6-2
• Radiated interference: EN 61000-6-3
• Approvals: CE, UL approval / E217823

Mechanical design:

• Protection according to EN 60529: IP 56
• Operating speed: ≤10,000 rpm (mechanical)
• Operating torque: 6 Ncm
• Rotor moment of inertia: 160 gcm²
• Material: Housing: cast aluminum, shaft: stainless steel
• Operating temperature: -30…+100 °C (-25…+100 °C with >3072 pulses)
• Vibration: IEC 60068-2-6, 17 g, 10-2000 Hz
• Shock: IEC 60068-2-27, 275 g, 6 ms
• Corrosion resistance: IEC 60068-2-52, salt spray for environmental conditions C4 according to ISO 12944-2

Advantages:

• High accuracy: Provides accurate speed measurement, which is critical for many industrial applications.
• Resistant to conditions: Operates in a wide range of temperatures and humidities, allowing it to be used in a variety of environments.
• Rugged design: Makes it easy to install and use in tight spaces.
• Energy efficiency: Minimal power consumption reduces energy costs, which is important for long-term projects.
• Reliability: High resistance to vibrations and shocks ensures stable operation in industrial environments.

This encoder is a perfect choice for industries that demand precision and reliability, ensuring it meets the rigorous standards of modern manufacturing.
