Out of stock

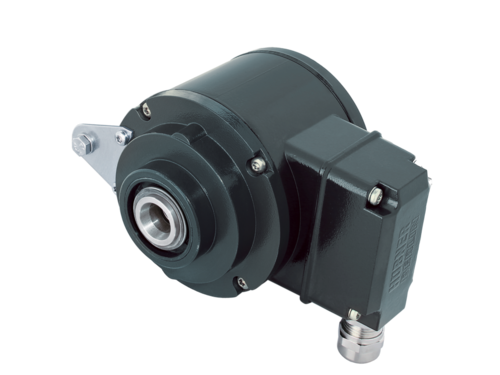

Baumer HOGS 100 incremental encoder, designed for optimal performance in industrial settings.
With options for blind hollow shafts and cone shafts, this encoder is versatile and reliable.
The Baumer HOGS 100 is a high-precision incremental encoder used for position and velocity measurement in industrial applications. Its robustness and accuracy make it an excellent choice for a wide range of applications.
Featuring a supply voltage range of 5 VDC В±10% to 9…30 VDC, this encoder ensures energy efficiency with a no-load consumption of ≤90 mA.
Its optical measurement method and phase shift of 90° enhance the precision of your measurements, while the IP 66 protection rating guarantees durability in challenging environments.
Datasheet
Electrical specifications:
- Supply voltage: 5 VDC ±10% or 9…30 VDC
- No-load consumption: ≤90 mA
- Number of sinusoidal cycles per revolution: 720 … 5000
- Phase shift: 90°.
- Counting signal: Zero pulse, 90° width
- Measurement method: Optical
- Output frequency: 250 kHz (-3 dB)
- Output signals: K1, K2, K0 + inverted
- Output stages: SinCos 1 Vpp
- SinCos amplitude difference: ≤20 mV
- Harmonics: typically -50 dB
- Offset constant: ≤20 mV
- Bandwidth: 250 kHz (-3 dB)
- Interference resistance: EN 61000-6-2
- Radiated interference: EN 61000-6-3
- Approvals: CE, UL approval / E217823
