Inductive sensor special version
SKU:
IFRH 12P3501/L
0.00€
Out of stock
One click request

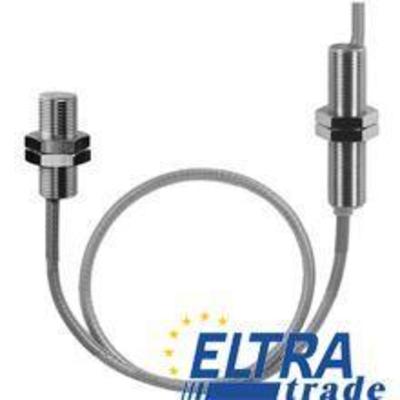

IFRH 12P3501/L inductive sensor, designed for high-temperature applications.
With a nominal sensing distance of 2 mm, this flush-mounted sensor is perfect for a variety of industrial settings.
Manufacturer:
Baumer
Description:
| housing length | 30 mm |
| voltage supply range +Vs | 10 … 30 VDC |
| switching frequency | < 2 kHz |
| IFRH 12P3501/L dimension | 12 mm |
| hysteresis | 2 … 20 % of Sr |
| manufacter SKU | IFRH 12P3501/L |
| type | cylindrical threaded |
| mounting type | flush |
| housing material | brass nickel plated |
| nominal sensing distance Sn | 2 mm |
| output current | < 200 mA |
| protection class | IP 67 |
| connection types | cable, 2 m |
| current consumption max. (no load) | 12 mA |
| short circuit protection | yes |
| operating temperature | -25 … +180 °C |
| reverse polarity protection | yes |
| output circuit | PNP break function (NC) |
| voltage drop Vd | < 2 VDC |
| operating temperature | -25 … +75 °C |
| special type | high temperature |
This sensor is engineered for durability and reliability in extreme conditions, ensuring optimal performance in challenging environments.
Its robust construction and advanced features make it an ideal choice for a wide range of applications.
