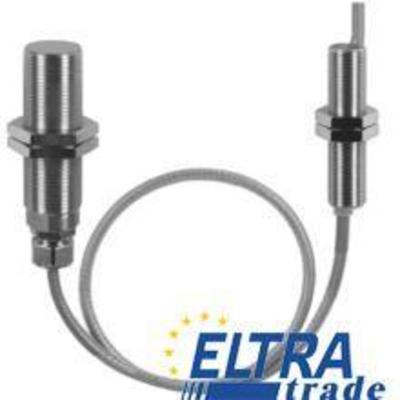

Inductive Sensors Special Versions designed for demanding applications.
Featuring a high temperature tolerance and flush mounting type, this sensor is ideal for various industrial settings.
The Inductive Sensors Special Versions are engineered for precision and reliability in extreme temperatures ranging from -25 to +180 °C.
| output circuit | PNP make function (NO) |
| hysteresis | 2 … 20 % of Sr |
| operating temperature | -25 … +180 °C |
| connection types | cable, 2 m |
| nominal sensing distance Sn | 5 mm |
| housing length | 71 mm |
| current consumption max. (no load) | 12 mA |
| type | cylindrical threaded |
| protection class | IP 67 |
| voltage supply range +Vs | 10 … 30 VDC |
| mounting type | flush |
| short circuit protection | yes |
| switching frequency | < 1 kHz |
| output current | < 200 mA |
| operating temperature | -25 … +75 °C |
| housing material | stainless steel |
| voltage drop Vd | < 2 VDC |
| IFRH 18P1501/L dimension | 18 mm |
| special type | high temperature |
| reverse polarity protection | yes |
| manufacter SKU | IFRH 18P1501/L |
This sensor guarantees enhanced durability and performance, making it a top choice for industrial applications that require consistent operation in challenging conditions.
