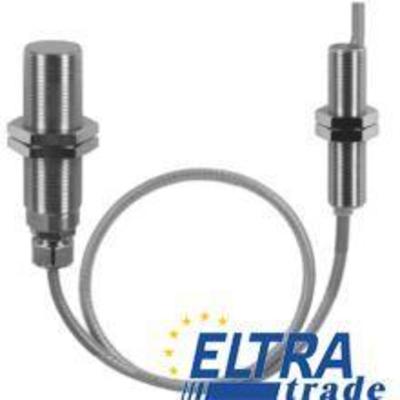

Inductive Sensors Special Versions, designed for reliable detection in challenging environments. With a nominal sensing distance of 5 mm and a maximum operating temperature of +180 °C, these sensors are perfect for high-temperature applications.
| current consumption max. (no load) | 12 mA |
| housing material | stainless steel |
| short circuit protection | yes |
| nominal sensing distance Sn | 5 mm |
| output current | < 200 mA |
| manufacter SKU | IFRH 18P3501/L |
| reverse polarity protection | yes |
| voltage supply range +Vs | 10 … 30 VDC |
| type | cylindrical threaded |
| switching frequency | < 1 kHz |
| special type | high temperature |
| mounting type | flush |
| connection types | cable, 2 m |
| voltage drop Vd | < 2 VDC |
| IFRH 18P3501/L dimension | 18 mm |
| housing length | 71 mm |
| hysteresis | 2 … 20 % of Sr |
| protection class | IP 67 |
| operating temperature | -25 … +75 °C |
| operating temperature | -25 … +180 °C |
| output circuit | PNP break function (NC) |
This sensor is equipped with advanced features such as short circuit and reverse polarity protection, ensuring durability and reliability. The stainless steel housing provides excellent resistance to harsh environments, making it ideal for industrial applications.
