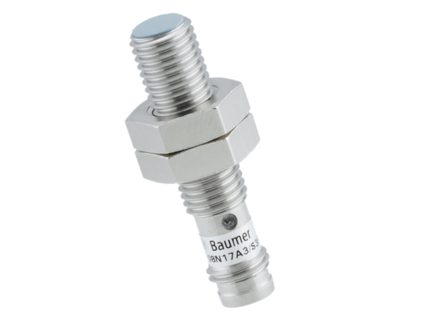

Baumer IFRM 08P17A5/S35L

The IFRM 08P17A5/S35L from Baumer is an inductive proximity sensor used for non-contact detection of metal objects. This sensor has a compact cylindrical design and is suitable for a variety of industrial applications where high accuracy and reliability are required.

With a nominal detection distance of 2 mm and a high switching frequency of 5 kHz, this sensor ensures precise and quick object detection. The robust stainless steel casing and IP67 protection class make it durable, while the wide operating temperature range of -25 to +75 °C ensures functionality in diverse environments.

Datasheet:

• Nominal detection distance (Sn): 2 mm
• Hysteresis: 3 … 20 % of Sr
• Switching frequency: 5 kHz
• Supply voltage range (+Vs): 6 … 36 V DC
• Maximum current consumption (no load): 12 mA
• Output current: 200 mA
• Output circuit: PNP, normally open (NO)
• Voltage drop (Vd): <2 Vdc
• Short circuit protection: Yes
• Reverse polarity protection: Yes
• Case material: Stainless steel
• Active surface material: PBT
• Dimensions: Diameter 8 mm, body length 28 mm
• Connection type: M8 connector
• Maximum tightening torque: 10 Nm (front part: 7 Nm)
• Operating temperature: -25 … +75 °C
• Protection class: IP 67

Advantages:

• Compact design: Due to its small size, the sensor can be easily integrated into limited spaces.
• High accuracy: The nominal detection distance of 2 mm ensures accurate object detection.
• Reliability: Short-circuit and reverse polarity protection enhances reliability.
• Wide operating temperature range: The detector can operate in conditions ranging from -25 to +75 °C, making it versatile for various environments.
• High switching frequency: A switching frequency of 5 kHz allows the sensor to be used in high-speed systems.
