Baumer IGYX 08P17B3/L

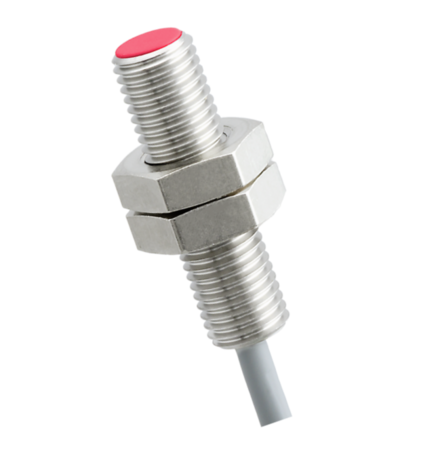

IGYX 08P17B3 L is an inductive proximity sensor from Baumer. This sensor is designed to detect metal objects at a distance of up to 2 mm. It has a threaded cylindrical shape and is made of stainless steel for high strength and durability.

Datasheet:

• Nominal detection distance (Sn): 2 mm
• Guaranteed detection distance (Sa): 1.6 mm
• Temperature drift: ± 10 % of Sr (0 … +60 °C)
• Hysteresis: 3 … 20 % of Sr
• Switching frequency: 3 kHz
• Supply voltage range: 10 … 30 V DC
• Maximum current consumption (no load): 15 mA
• Output circuit: PNP, no-load function (NO)
• Voltage drop (Vd): <2.5 V DC
• Output current: 200 mA
• Short circuit protection: Yes
• Reverse polarity protection: Yes
• Case material: Stainless steel
• Sensitive surface material: PBT, red
• Dimensions: Ø8 mm, housing length 30 mm
• Connection type: Cable, length 2 m
• Maximum tightening torque: 5 Nm
• Operating temperature: -25 … +75 °C
• Protection class: IP 67

Advantages:

• High accuracy: With a nominal detection distance of 2 mm and a guaranteed distance of 1.6 mm, the sensor ensures precise object detection.
• Reliability: The high IP 67 rating and housing materials ensure durability and resistance to external influences.
• Wide operating temperature range: The detector can operate in conditions ranging from -25 to +75 °C, making it versatile for a variety of applications.
• Short circuit and reverse polarity protection: These features provide additional safety and reliability in operation.
• Easy to install: The cylindrical threaded shape and maximum tightening torque of 5 Nm make it easy to install the sensor in various systems.

This sensor is an ideal solution for industrial automation and control, offering consistent performance in challenging environments.
