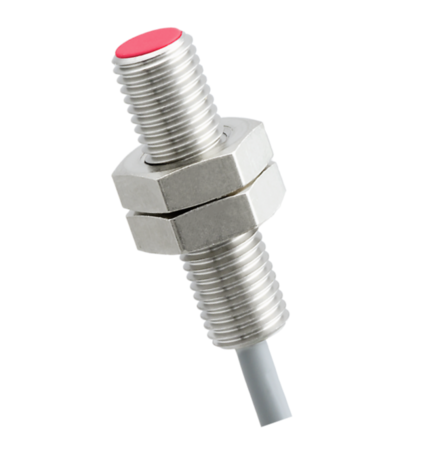

Baumer IGYX 08P17B3/S35L

The IGYX 08P17B3 S35L is an inductive proximity sensor from Baumer. It is designed to detect metal objects without physical contact, making it ideal for use in automation and process control applications.

Datasheet:

• Nominal detection distance (Sn): 2 mm
• Guaranteed detection distance (Sa): 1.6 mm
• Output function: PNP (normally open)
• Switching frequency: 3 kHz
• Supply voltage range: 10-30 V DC
• Maximum current consumption (no load): 15 mA
• Maximum output current: 200 mA
• Short circuit protection: Yes
• Reverse polarity protection: Yes
• Case material: Stainless steel
• Sensitive surface material: PBT (red)
• Dimensions: Diameter 8 mm, body length 36 mm
• Connection type: M8 connector
• Maximum tightening torque: 5 Nm
• Operating temperature: -25 to +75 °C
• Protection class: IP67

Advantages:

• High accuracy: Thanks to a nominal detection distance of 2 mm and a guaranteed distance of 1.6 mm.
• Reliability: Short-circuit and reverse polarity protection ensures durability and safe use.
• Versatility: Suitable for a wide range of environments thanks to its wide operating temperature range and high IP67 protection class.
• Easy to install: Compact size and standard M8 connector facilitate installation and integration into automation systems.

With its robust design and advanced features, the IGYX 08P17B3/S35L ensures optimal performance in various industrial applications. Its stainless steel casing and PBT sensitive surface material provide durability and resilience in challenging environments.
