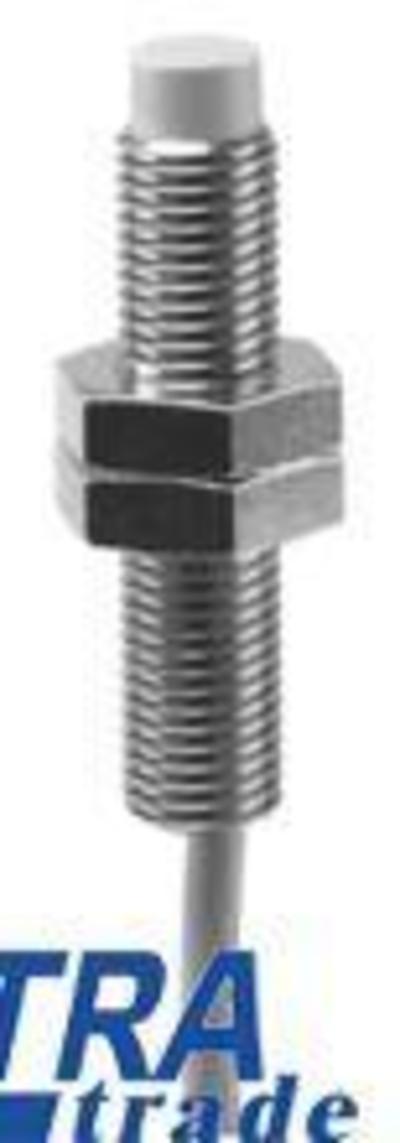

IR08.P06S-N40.NO1Z.7SCV inductive proximity switch, designed for precision and reliability. With a nominal sensing distance of 6 mm and a robust stainless steel housing, this sensor is perfect for various applications.
| nominal sensing distance Sn | 6 mm |
| temperature drift | В± 10 % (0 … +60 °C) В± 15 % (-25 … +75 °C) |
| switching frequency | < 400 Hz |
| protection class | IP 67 |
| special type | enhanced distance (GammaProx) |
| connection types | cable, 2 m |
| type | cylindrical threaded |
| tightening torque max. | 10 Nm (A: 7 Nm) |
| IR08.P06S-N40.NO1Z.7SCV dimension | 8 mm |
| voltage drop Vd | < 2 VDC |
| correction factor typ. | mild steel 100 %, stainless steel 80 %, aluminum 50 % |
| short circuit protection | yes |
| output indicator | LED red |
| mounting type | non-flush |
| housing material | stainless steel |
| housing length | 40 mm |
| current consumption max. (no load) | 12 mA |
| output current | < 100 mA |
| manufacturer SKU | IR08.P06S-N40.NO1Z.7SCV |
| output circuit | NPN make function (NO) |
| voltage supply range +Vs | 6 … 36 VDC |
| material (sensing face) | PBT |
| reverse polarity protection | yes |
| operating temperature | -25 … +75 °C |
| hysteresis | 3 … 20 % of Sr |
This inductive proximity switch is engineered to withstand harsh conditions, making it suitable for industrial environments. With features like reverse polarity protection and a wide voltage supply range, it ensures reliable performance. Trust the IR08.P06S-N40.NO1Z.7SCV for your automation needs.
